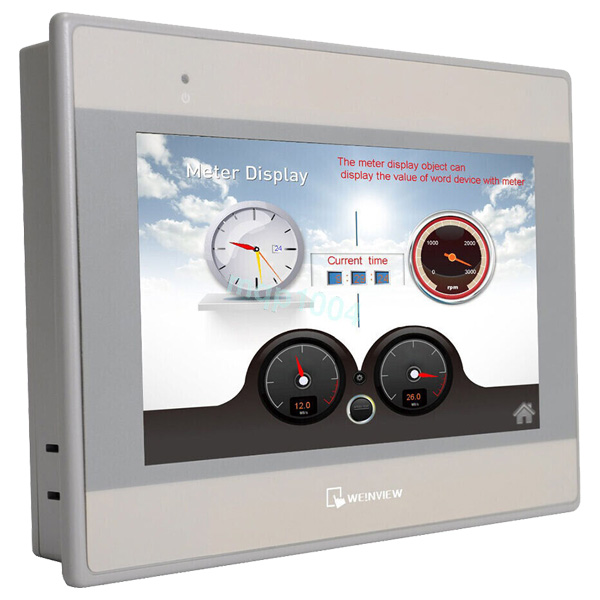

MT8071iE | Weintek Human Machine Interface

SpecificationDisplayDisplay: 7" TFTResolution: 800 x 400Brightness (cd/m²): 400Contrast Ratio: 800:1Backlight Life Time: >30,000 hrs.Colors: 16.7MLCD Viewing Angle (T/B/L/R): 80/60/80/80Touch PanelType: 4-wires Resistive typeAccuracy: Active Area Length(X)±2%, Width(Y)±2%MemoryFlash: 128 MBRAM: 128 MBProcessor32-bit RISC 600MHzI/O PortUSB Host: USB 2.0 x 1Ethernet: 10/100/1000 Base-T x 2COM 1: RS-232COM 2: RS-485 2W/4WCOM 3: RS-485 2W/RS-232*(1)RTCBuilt-inPowerInput Power: 24±20%VDCPower Isolation: Built-inPower Consumption: 600mA@24VDCVoltage Resistance: 500VAC (1 min.)Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)SpecificationPCB Coating: YesEnclosure: PlasticDimensions WxHxD: 200.3 x 146.3 x 34 mmPanel Cutout: 192 x 138 mmMount: Panel mountEnvironmentProtection Structure: UL Type 4X (indoor use only) / NEMA4 / IP65 Compliant Front PanelStorage Temperature: -20° ~ 60°C (-4° ~ 140°F)Operating Temperature: -0° ~ 50°C (32° ~ 122°F)Relative Humidity: 10% ~ 90% (non-condensing)CertificateCE: CE markedUL: cULus ListedATEX: ATEX Zone 2/22 Category 3 G/DSoftwareEasyBuilder Pro Built-in EasyAccess 2.0
