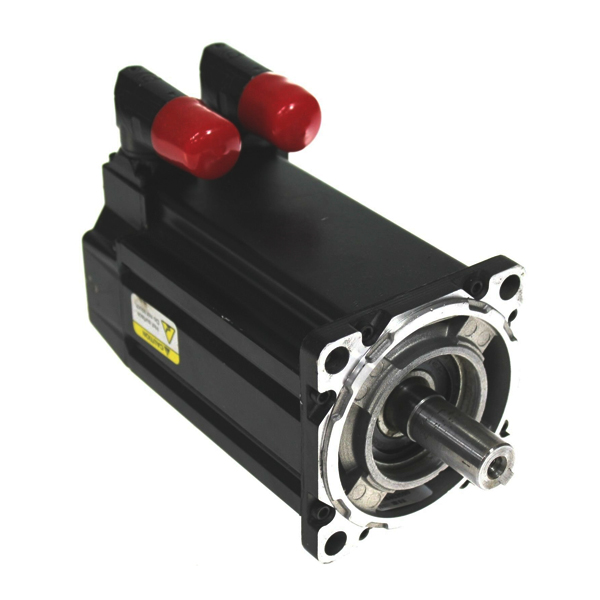

MPL-B4530F-SJ72AA | Allen Bradley MP-Series Low Inertia Motors

Part Number: MPL-B4530F-SJ72AAOrdering InformationModel: MP - Premium permanent magnet rotary servo motorSeries Type: L - Low InertiaVoltage Class: B - 400VFrame Size: 45 - 130 mmMagnetic Stack Length?: 40 - 101.6 mm (4.0 in.)Rated Speed?: F - 3000 rpmFeedback: S - 1024 sin/cos, absolute single-turn encoder (Hiperface protocol)?Enclosure/Shaft Key/Shaft Seal: J - Shaft key/No shaft sealConnectors: 7 - Circular (SpeedTec) DIN connector, right angle, 180? rotatable?Brake: 2 - No BrakeMounting Flange: A - IEC metric, free mounting holes (type FF)Factory Options: A - StandardNot all combinations are available. Only the configurations for rated speed and magnet stack length, as listed in MP-Series Low Inertia Motor (200V-class) Performance Specifications on page 78 and MP-Series Low Inertia Motor (400V-class) Performance Specifications on page 79, are available. Use Motion Analyzer software to size and select motors for your application.Applies to MPL-A/B3xx, MPL-A/B4xx, MPL-A/B45xx, MPL-A/B5xx, MPL-B6xx, MPL-B8xx, and MPL-B9xx motors.Applies to all Bulletin MPL motors with M23 and M40 cable connectors. M58 connectors (MPL-B8xxx and MPL-B9xxx motors) must be physically removed and repositioned in 90? increments.
