Промышленное оборудование · Yokogawa Loop Powered Process Indicator

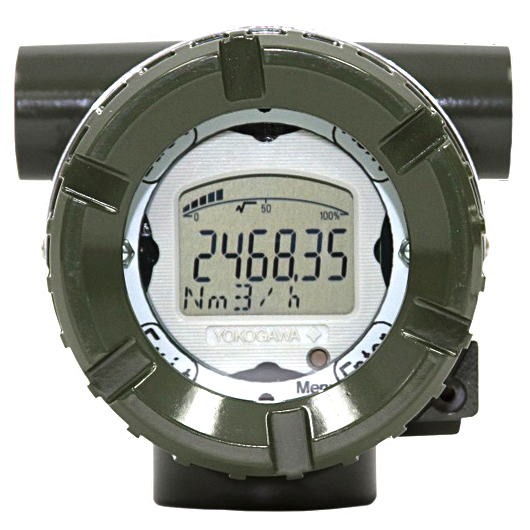

MLX-A12-13/FF1/X2/ENG/SST/P7 | Yokogawa Loop Powered Process Indicator
Артикул: QT-2831
от 1 910 083 ₸
В наличии: 0
Предложения складов
Склад
Цена
В тенге
Остаток
Доставка
Характеристики
Estimated Lead Time
10 - 12 Weeks
ID каталога
2909
Model
MLX - Loop IndicatorInput Signal: -A - 4 to 20mA DCMounting: 1 - 2 inch Horizontal PipeHousing: 2 - SUS316 cast stainless steel and ASTM CF-8MCommunication: -1 - StandardElectrical Connection: 3 - ISO M20 x 1.5 female, two electrical connections without blind plugsFactory Mutual: /FF1 - FM Explosion-proof/FM Dust-Ignition-Proof ApprovalConforms to: FM3600, FM3615, UL 1203Explosionproof/Dust-Ignition-Proof for Class I, II, III, Division 1 & 2, Groups A G, Class I, Zone 1, Group IIC T4Ambient Temp
Shipping Weight
4 Kg
Артикул
MLX-A12-13/FF1/X2/ENG/SST/P7
Вес
4 Kg
Срок поставки
10 - 12 Weeks
Описание
Product Number: MLX-A12-13/FF1/X2/ENG/SST/P7Ordering InformationModel: MLX - Loop IndicatorInput Signal: -A - 4 to 20mA DCMounting: 1 - 2 inch Horizontal PipeHousing: 2 - SUS316 cast stainless steel and ASTM CF-8MCommunication: -1 - StandardElectrical Connection: 3 - ISO M20 x 1.5 female, two electrical connections without blind plugsFactory Mutual: /FF1 - FM Explosion-proof/FM Dust-Ignition-Proof ApprovalConforms to: FM3600, FM3615, UL 1203Explosionproof/Dust-Ignition-Proof for Class I, II, III, Division 1 & 2, Groups A G, Class I, Zone 1, Group IIC T4Ambient Temperature: 40 to 80?C ( 22 to 176?F)Temperature class: T4Coating: /X2 - Polyurethane-Epoxy Anti-corrosion coating?Calibration: /ENG - Calibration range and scaleStainless steel tag plate: /SST - Stainless steel tag screw attached to housingPaint: /P7 - Gray (RAL # 7046)Note:1. Option only available with /FF1 Option.
