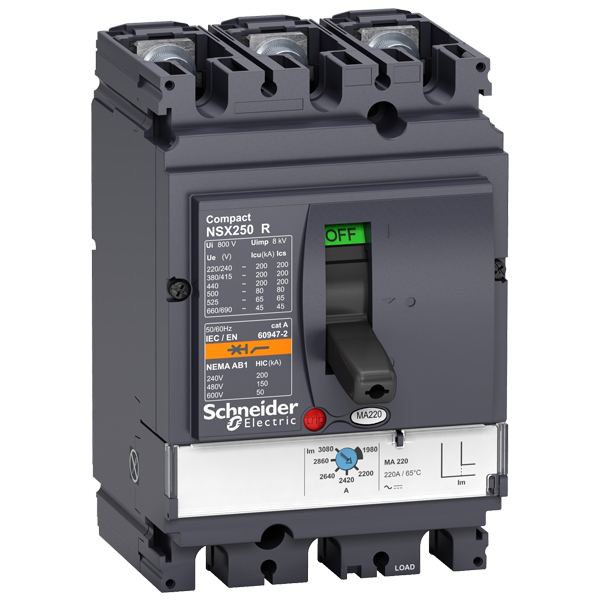

LV433501 | Schneider Electric Circuit Breaker

CharacteristicsRange: CompactProduct name: Compact NSXDevice short name: Compact NSX250RProduct or component type: Circuit breakerDevice application: MotorPoles description: 3PProtected poles description: 3t[In] rated current: 220 A at 65 °C[Ue] rated operational voltage: 690 V AC 50/60 HzNetwork type: ACNetwork frequency: 50/60 HzSuitability for isolation:Yes conforming to EN 60947-2Yes conforming to IEC 60947-2Utilisation category: Category A[Icu] rated ultimate short-circuit breaking capacity:200 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2200 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2200 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-280 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-265 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-245 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2Performance level: R 200 kA 415 V ACTrip unit name: MATrip unit technology: MagneticTrip unit protection functions: IControl type: ToggleCircuit breaker mounting mode: Fixed
