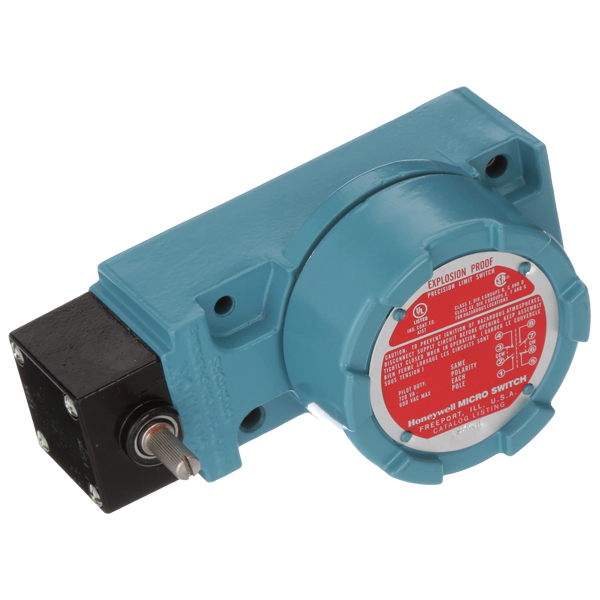

LSXM4N | Honeywell MICRO SWITCH LSX Series Explosion-Proof Limit Switch

OverviewMICRO SWITCH LSX Series Explosion-Proof Limit Switches (Non Plug-in), Side Rotary, 2NC 2NO DPDT Center Neutral, 0.75 in - 14NPT conduit, Lever Included.MICRO SWITCH LSX switches are for use either indoors or outdoors in hazardous atmospheres as they are a completely sealed, explosion-proof device. Mounting hole location and tracking is the same as the long established MICRO SWITCH ™ ML-E1 explosion-proof switch. An optional mounting plate provides the same tracking and mounting as the standard HDLS. The majority of HDLS operating heads and circuitry options are available on the LSX. Standard HDLS levers are used, but because of explosion-proof requirements, only nylon rollers or other non-sparking material can be selected. Plunger and cat whisker types listed in the LSX order guide are non-sparking materials. The MICRO SWITCH LSX withstands pressure of an internal explosion and cools the exploding gases below the kindling temperature of the explosive atmosphere. Flame paths are provided by the cover-housing threads and an extended plunger between the switch cavity and head. Technical Specifications Approvals Div 1 & 2, Class I Groups B, C, and D; Div 1 & 2 Class II, Groups E, F, & G Series Name LSX Operating Force (OF) 0,45 Nm [4 in lb] max. Differential Travel (DT) 10° max. Product Type MICRO SWITCH Weather-Sealed, Explosion-Proof Limit Switches Supply Voltage 600 Vac and 250 Vdc max. Circuitry 2NC 2NO DPDT Center-Neutral, Snap Action, Double-Break Housing Material Aluminum Housing Type LSX Non Plug-in Operating Temperature -1°C to 121°C [30°F to 250°F] Agency Approvals and Standards UL, CSA Availability Global Pretravel (PT) 18° max. Overtravel (OT) 57° min. Actuator Side Rotary Lever Type 1.5 in Fixed Length Lever with front mounted Nylon Roller (.75 in dia. x .25 in wide) Ampere Rating 10 A (Thermal) Termination Type 0.75 in - 14NPT Conduit
