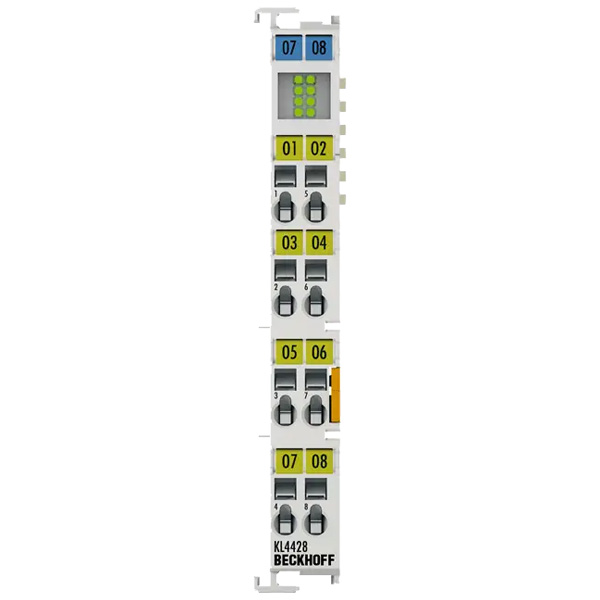

KL4428 | Beckhoff Bus Terminal
Классический аналоговый выходной терминал, обеспечивающий сигналы в диапазоне 4...20 mA. Питание осуществляется от 24 В, с разрешением 12 бит. Терминал объединяет восемь каналов в одном корпусе и подходит для компактного монтажа в кабинетах управления.
Запросить ценуПредложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|---|---|---|---|
| склад-3 | По запросу | Цена по запросу | 1 | 30–45 дней |
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Factory Warranty | 12 Months |
| ID каталога | 103427 |
| Manufacturer | Beckhoff |
| Model | Bus Terminal, 8-channel analog output, current, 4…20 mA, 12 bit, single-ended |
| Part Number | KL4428 |
| Артикул | KL4428 |
Описание
The KL4428 analog output terminal generates signals in the range between 4 to 20 mA. The power is supplied to the process level with a resolution of 12 bits and is electrically isolated. The output stage is powered by the 24 V supply. The KL4428 combines eight channels in one housing and is particularly suitable for space-saving installation in control cabinets. The use of single conductor connection technology enables the connection of multi-channel actuator technology with minimum space requirements.The Bus Terminal has a common ground potential. The power contacts are connected through. The reference ground of the outputs is the 0 V power contact. The LEDs indicate the data exchange with the Bus Coupler.
