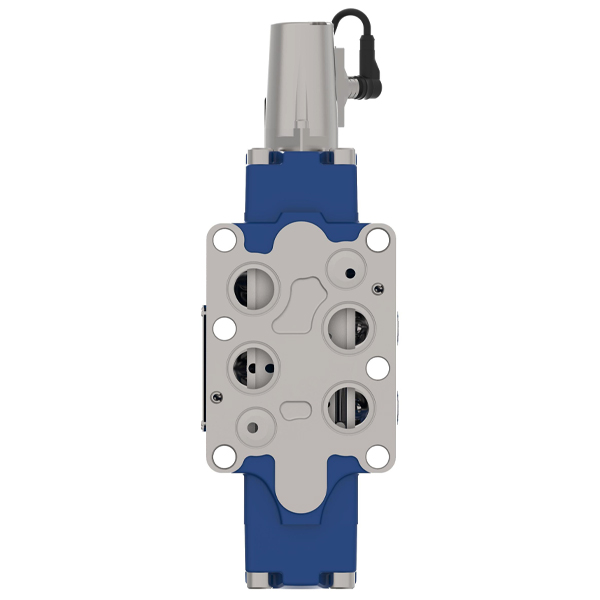

KBHDG5V-8-2C375N250-EX-M1-PE7-H4-12 | Vickers Proportional Two-Stage Directional Valves

Part Number: KBHDG5V-8-2C375N250-EX-M1-PE7-H4-12Model: Proportional Two-Stage Directional ValvesBrand: VickersOrdering InformationValve typeKProportional valveIntegral amplifierBIntegral amplifier "B" seriesFeed back arrangementHFrom pilot and main stagesControl typeDDirectional valveMountingGSubplate mountedOperation5Solenoid controlled, pilot operatedPressure ratingV310 bar (4500 psi) Size 05Interface8Size 08Spool type, flow rating and metering2C375N250375 L/min (99 US gpm), “A” port flow; 250 L/min (66 US gpm), “B” port flowPilot supplyEXExternal (with reducer)Electrical Control SignalM1±10 demand signal, ±10V monitor signalElectrical connectionPE77 pin connector with plugCoil ratingH24 VDC amplifier supplyPort T pressure limit rating450 bar (700 psi)Design number1212 series
