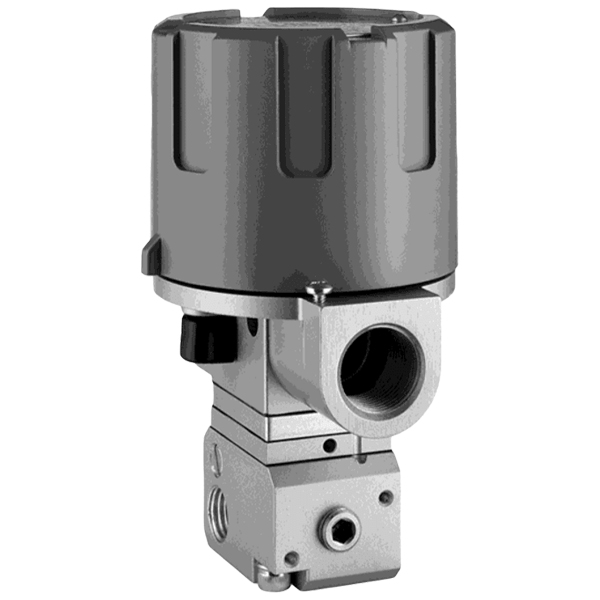

IP26-1000 | Foxboro IP26 Series Electro/pneumatic Signal Converter

Part Number: IP26-1000Model: IP26 Series Electro/pneumatic Signal ConverterManufacturer: FoxboroDescriptionThe IP26 (current to pressure) transducer converts a 4–20mA electrical current signal to a proportional linear pneumatic output. The unique conversion technology provides a high level of accuracy and repeatability for the operation of actuated valves. A low mass control circuit provides consistent output in high vibration applications. This compact unit is housed in an explosion proof enclosure that is designed for pipe, bracket or direct manifold mounting. This explosion-proof and intrinsically safe field device is available with a built-in volume booster.Features4 to 20 mA, 2-wire Loop poweredCompact design, small size and low weightApprovals Intrinsically Safe and Explosion Proof ATEX, FM and CSA certificationGas and Dust certificationPosition insensitive – Unit can be mounted in any plane and is stable in high vibration environmentsLow power consumption minimize loop loadOrdering InformationModel: IP26 - Electro/pneumatic Signal ConverterInput Signal: 1 - 4 - 20 mAOutput Signal (without Output gauge): 0 - 0.2 - 1 bar (3-15 psi)Body Material: 0 - AluminiumElectrical Certification: 0 - ATEX Intrinsically Safe and Explosion Proof
