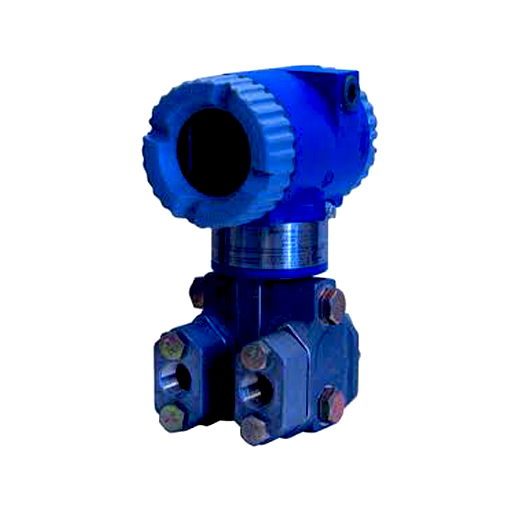

Product Number : IMV31-T22CE21F-M2B1C2L1 ModelDescriptionIMV31Multivariable TransmitterElectronics Versions and Output Signal-TIntelligent; Digital HART and 4 to 20 mA dc (Version -T)Structure Code - Process Covers, Sensor Material, and Sensor Fill FluidCoversSensorFill Fluid22316 ss316L ssSiliconeSpan Limits - Differential Pressure (DP) MeasurementkPainH2OmbarAvailable with (a)C2.5 and 21010 and 84010 and 84010 and 840Span Limits - Absolute Pressure (AP) Measurement (Absolute Measured: Gauge Calculated)MPaapsiabara or kg/cm² absAvailable with (a)E0.21 and 10 (n) 30 and 1500 (n)2.1 and 100 (n)DP Codes B and C onlyProcess Connector Type (Material Same as Process Cover Material)21/2 NPTConduit Connection and Housing Material11/2 NPT Connection, Aluminum HousingElectrical SafetyFFM approved Division 1 intrinsically safe, explosionproof, dust-ignitionproof, and nonincendive, Division 2, Classes I, II, and III. ALso zone approved instrinsically safe AEx ia IIC.Mounting Bracket Set-M2Stainless Steel Bracket with Stainless Steel BoltsBolting for Process Covers/Connectors (b)B1316 ss Bolts and NutsCustom Factory ConfigurationC2Full Factory Configuration (Requires completion of Multivariable Configuration Wizard before entering the order) (c)Digital Indicator with PushbuttonsL1Digital Indicator, Pushbuttons, and Window Cover(a) Refer to Functional Specifications section for allowable combinations of DP and AP Span Limit Codes.(b) Not available with DIN 19213 Construction options. For stainless steel bolting with DIN 19213, specify -D5, -D6, -D7, or -D8.(c) IPS recommends the selection of Option -C2 if the application information is known. If Option -C2 is not selected, a standard default configuration will be provided. The user will then need the Model PCMV to completely configure the transmitter for liquid level applications.
