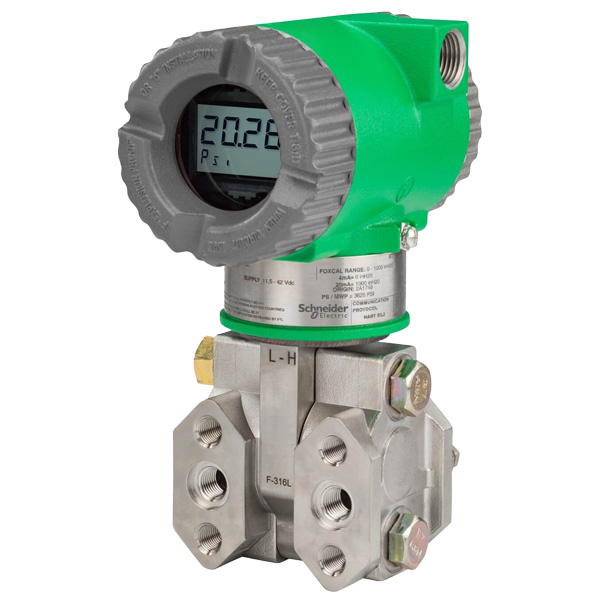

Ordering Information Model IMP10S Multivariable Transmitter with Differential Pressure, Absolute Pressure, and Temperature Measurement Electronics Version -T HART and 4 to 20 mA Traditional (Standard Mount) Structures 22 316 ss process cover material, 316L ss diaphragm material, silicone fill fluid Span Limits BD Differential Pressure: 0.5 and 50 kPa; 2 and 200 inH2O; 5 and 500 mbarAbsolute Pressure: 0.02 and 2.1 MPaa; 3 and 300 psia; 0.21 and 21 bara Process Connector Type (material is same as Process Cover material) 0 None Conduit Connection and Housing Material 1 1/2 NPT conduit connection; aluminum housing Electrical Certifications(1) FD FM Classes I, II, and III Division 1 explosionproof, dust ignitionproof, Zone approved Optional Display with Pushbuttons and Window Cover -L1 Digital display, pushbuttons, and window cover Other Optional Selections -V Vent screw in side of each process cover(2) Contact Global Customer Support for availability.Requires a Traditional Structure Code.
