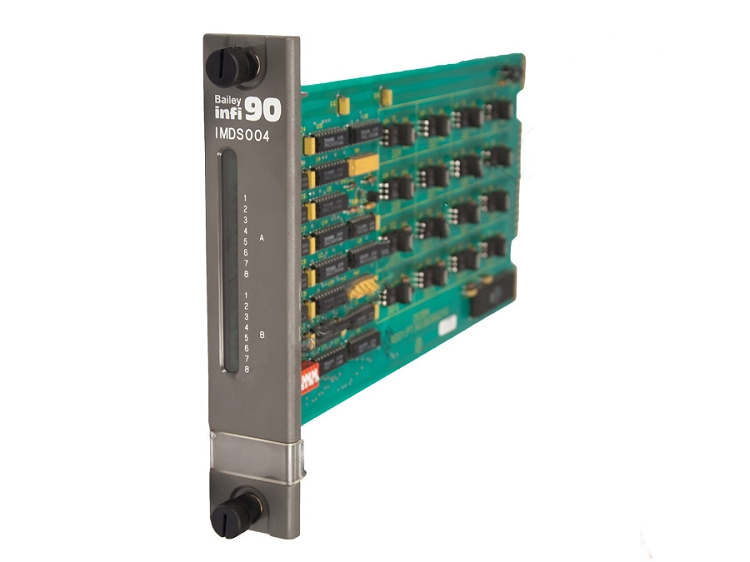

IMDSO04 | ABB Bailey Infi 90 Digital Output Slave Module

Product Number : IMDSO04ModelIMDSO04Voltage+5 VDC (± 5%)Current Consumption135 mA (typical)200 mA (maximum)Dissipation (logic only)750 mW (typical)1.2 W (maximum)Load Voltage24 VDCLoad Current (maximum)250 mAOff Leakage Current (maximum)10 µA @ 70ºC (158ºF)On Voltage Drop (maximum)2.4 V @ 70ºC (158ºF)Current Consumption150 mA (typical), 250 mA (maximum)Isolation300 V rms between output and logic circuitry and output to output. CSA approved for 300 V isolation.Surge Withstanding CapabilityMeets ANSI/IEEE C37.90A-1974 "Guide for Surge Withstanding Capability Test".MountingOccupies one slot in a standard Infi 90 module mounting unit.Ambient Temperature0º to 70ºC (32º to 158ºF)Relative Humidity0 to 95% up to 55ºC (131ºF) (non-condensing) 0 to 45% up to 70ºC (158ºF) (non-condensing)Atmospheric PressureSea level to 3 km (1.86 miles)Air QualityNon-corrosiveCertificationCSA certified as process control equipment in an ordinary (non-hazardous) location.
