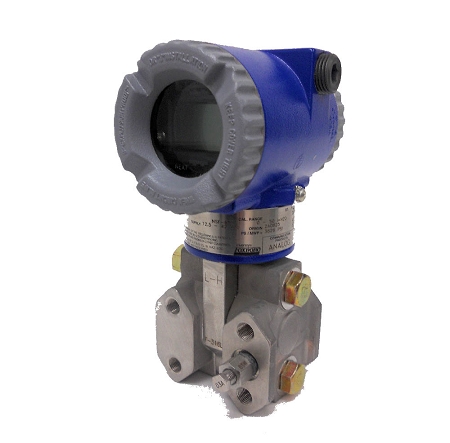

Product Number : IGP20-T22E01M-M2L1TModelDescriptionIGP20I/A Series, Electronic, Bracket-Mounted Gauge Pressure TransmitterElectronics Versions and Output Signal-TIntelligent; Digital HART and 4 to 20 mA dc (Version -T)Structure Code - Select from one of the following three groups:Hi-Side CoverSensorFill Fluid22316 ss316L ssSiliconeSpan Limits (Absolute or Gauge Pressure Units)MPapsibarE (a)0.7 and 21100 and 30007 and 210Process Connector Type (Material Same as Process Cover Material)0None; connect directly to process cover (not available with Structure Codes 78 and 79)Conduit Connection and Housing Material11/2 NPT Conduit Connection, Aluminum HousingElectrical SafetyMATEX Multiple Certifications (includes ATEX Codes E, D, and N) (b)Mounting Bracket Set - Not available with Direct Connect Seals, Structure Codes F1 and F2-M2Standard Style Stainless Steel Bracket with Stainless Steel BoltsDigital Indicator with PushbuttonsL1Digital Indicator, Pushbuttons, and Window CoverMiscellaneous Optional SelectionsTSupplemental Customer Tag (Stainless Steel Tag wired onto Transmitter)(a) Span Limit Codes E and F not available with Structure Codes 78 and 79 (PVDF insert in HI Side Cover).(b) A cover lock is provided as standard with Electrical Safety Codes D, B, G, and M.
