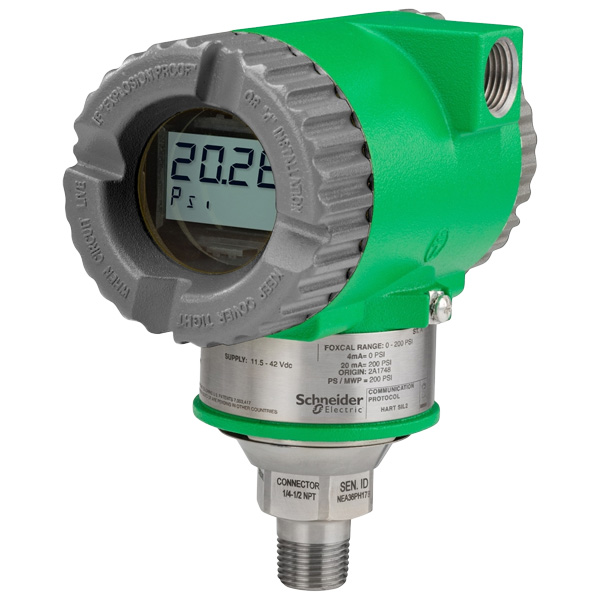

Ordering Information Model IGP10S Gauge Pressure Transmitter, Advanced Tier with FoxCal™ Electronics Versions/Output Signals -T HART and 4 to 20 mA with SIL 2 Structure — Direct Connect Flameproof 60 316L ss Process Sensor; C276 Diaphragm; Silicone Fill; 1/2 NPT Ext. Conn.; 1/4 NPT Int. Conn. Span Limits D 3.4 and 1380 kPa (0.5 and 200 psi) Conduit Connection and Housing Material 6 M20 Conduit Connection, Both Sides, 316 ss Housing Electrical Certifications D Optional Mounting Bracket Sets -M7 Stainless Steel Bracket for Flameproof Direct Connect Sensor Structures(1) Options for Digital Indicator with Pushbuttons -L1 Digital Display, Pushbuttons and Window Cover Optional SIL 2 Selections(2) -S2 Red Cover for SIL 2 on Electronics/Indicator Side of Housing(3) Optional Electronics Housing Features -Z1 External Zero Adjustment(4) Optional Manifold Configurations -H2 Manifold Mounted to Transmitter and Pressure Tested (Certificate) Available only with flameproof Direct Connect Structure codes, excluding D5 and D6.Available only with Electronics Version -T.Not available with Electronics Version -M.Not available for structures with sanitary or pulp and paper seals.
