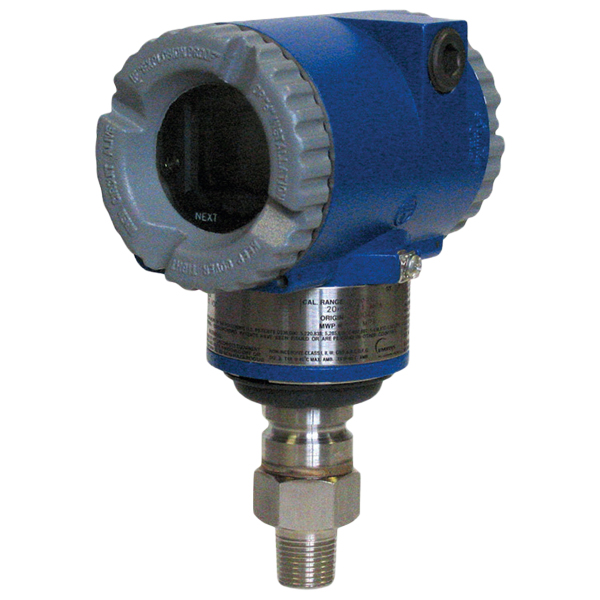

Ordering Information Model IGP10S Gauge Pressure Transmitter, Advanced Tier with FoxCal™ Electronics Versions/Output Signals -T HART and 4 to 20 mA with SIL 2 Structure — Direct Connect Flameproof 36 316L ss Process Sensor; 316L ss Diaphragm; Silicone Fill; 1/2 NPT Internal Conn. Only(1) Span Limits F 0.52 and 41.4 MPa (75 and 6000 psi)(2) Conduit Connection and Housing Material 1 1/2 NPT Conduit Connection, Both Sides, Aluminum Housing Electrical Certifications ZZ No certification Optional Mounting Bracket Sets -M1 Painted Steel Bracket, Plated Steel Bolts, 1/2 NPT, Direct Connect Only(3)(4)(5) Options for Digital Indicator with Pushbuttons -L1 Digital Display, Pushbuttons and Window Cover Not available with option codes -V1, -V2, -V3, and -V4.Available for gauge pressure transmitters only.Not available with biplanar structures.Not available with Electrical Certification codes that end in D or P.Available with Conduit Connection and Housing Material codes 1 and 3 only.
