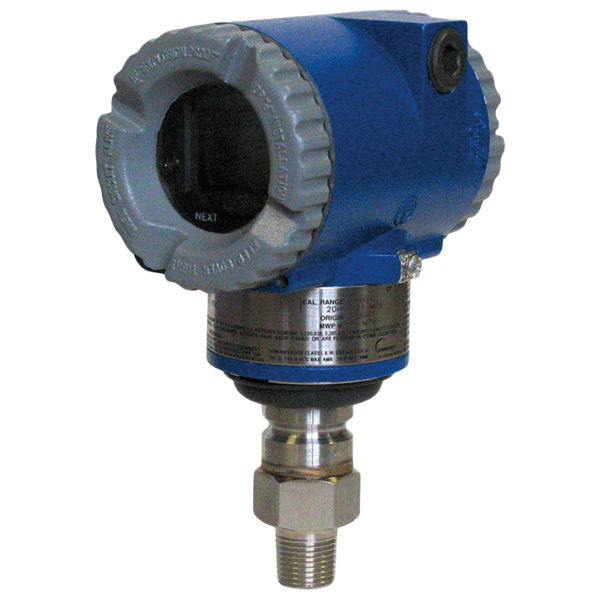

IGP10S-T22D1FM-M1 | Foxboro IGP10 I/A Series High Gauge Pressure Transmitter

Ordering Information Model IGP10S Gauge Pressure Transmitter, Advanced Tier with FoxCal™ Electronics Versions/Output Signals -T HART and 4 to 20 mA with SIL 2 Structure — Biplanar (Vented Low Side Process Cover and Diaphragm) 22 316L ss Process Sensor; 316L ss Diaphragm; Silicone Fill; 1/2 NPT Ext. Conn.; 1/4 NPT Int. Conn. Span Limits D 3.4 and 1380 kPa (0.5 and 200 psi)26 and 2070 kPa (3.75 and 300 psi)(1)(2) Conduit Connection and Housing Material 1 1/2 NPT Conduit Connection, Both Sides, Aluminum Housing Electrical Certifications FM FM multiple certifications (includes FM Codes FA or FN) Optional Mounting Bracket Sets -M1 Painted Steel Bracket, Plated Steel Bolts, 1/2 NPT, Direct Connect Only(3)(4)(5) Span limit, maximum working pressure, maximum overrange pressure, and maximum static pressure (d/p) are derated for optional IEC 61518 Construction and optional Bolting except for codes -D3, -D7, and -B2. Option -D1 is derated to 2320 psi. Options -D5 and -B1 are derated to 2175 psi. Options -D2, -D4, -D6, and -D8 are derated to 1500 psi. Option -B3 is derated to 2900 psi.Not available with Structure codes 78 and 79 (PVDF process covers).Not available with biplanar structures.Not available with Electrical Certification codes that end in D or P.Available with Conduit Connection and Housing Material codes 1 and 3 only.
