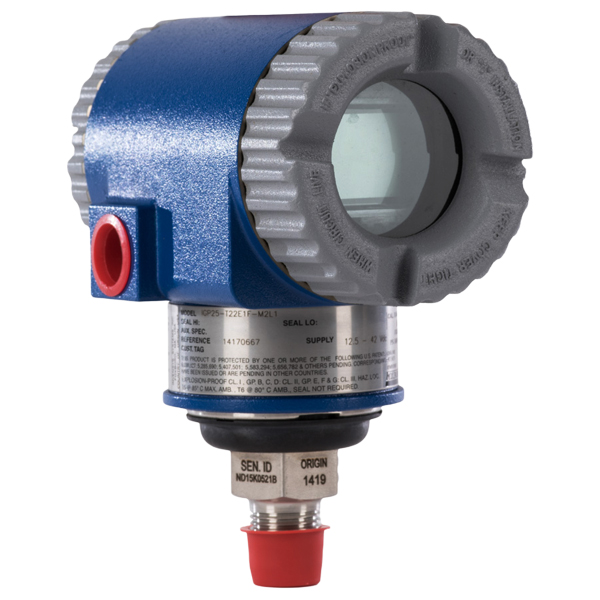

IGP10-T62E1G | Foxboro Pressure Transmitter [DISCONTINUED]

Product Number: IGP10-T62E1GModel: IGP10 Pressure TransmitterManufacturer: FoxboroOrdering InformationModel: IGP10 - I/A Series, Electronics, Direct Connected, High Gauge Pressure Transmitter¹Electronics Versions and Output Signal: -T - Intelligent; Digital HART and 4 to 20 mA (Version -T)Structure Code - Process Connection, Sensor, and Fill Fluid: 62Connection Material: 316L ssSensor: 316L ssFill Fluid: SiliconeSpan Limits - Absolute or Gauge Pressure Units, as Applicable: EMPa: 0.07 and 2.1psi: 10 and 300bar: 0.7 and 21Conduit Connection and Housing Material: 1 - 1/2 NPT Conduit Connection, Both Sides, Aluminum HousingElectrical Safety (See "ELECTRICAL SAFETY SPECIFICATIONS"): GATEX Certifications as follows:Version D and T; EEx nL IIC, Zone 2Version F; FNICO EEx nL IIC, Zone 2Refer to PSSs 2A-1C13A to 2A-1C13E for gauge pressure transmitter with span limits than 52 MPa (7500 psi).Refer to PSSs 2A-1C13K for IGP10 Transmitters with Sanitary Process Connections.Refer to PSSs 2A-1C13L for IGP10 Transmitters with Pulp and Paper Process Connections.
