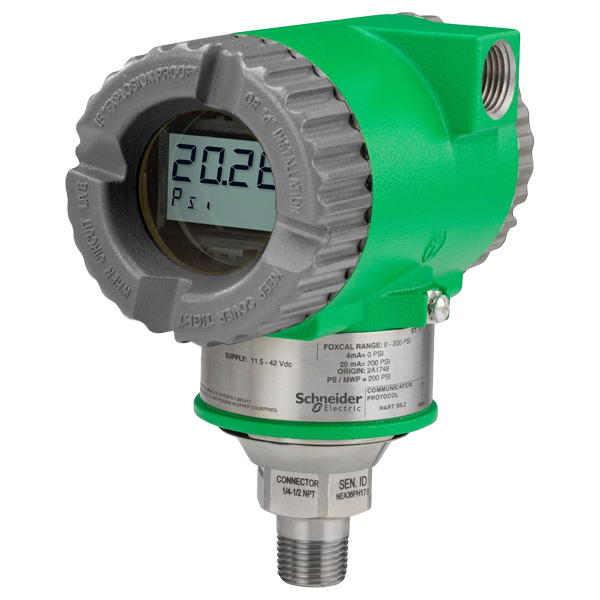

IGP05S-TB3A1FM-M9L1V5X2T

Ordering Information Model(1) IGP05S Gauge Pressure Transmitter, Value Tier Electronics Versions/Output Signals -T HART and 4 to 20 mA with SIL 2 Structure — Biplanar (Vented Low Side Process Cover and Diaphragm) B3 316 ss Cover; 316L ss Diaphragm; Inert Fill Span Limits A Transmitters with Direct Connect Structures: n/aTransmitters with Biplanar Structures: n/a Conduit Connection and Housing Material 1 1/2 NPT Conduit Connection, Both Sides, Aluminum Housing Electrical Certifications FM FM multiple certifications (includes FM Codes FA or FN) Optional Mounting Bracket Sets -M9 Painted Steel Bracket, Plated Steel Bolts, Biplanar Only Options for Digital Indicator with Pushbuttons -L1 Digital Display, Pushbuttons and Window Cover(2) Optional Vent Screw and Block and Bleed Valve -V5 Vent Screw in Side of Process Cover(3)(4)(5) Optional Cleaning and Preparation(6) -X2 Cleaned and Prepared for Oxygen Service – for Inert Fill Sensors Only(7)(8) Miscellaneous Optional Selections -T Supplemental Customer Tag (Stainless Steel Tag Wired onto Transmitter) Refer to Accuracy (Includes Linearity, Hysteresis, and Repeatability), page 33 for accuracy specifications.Not available with Electronics Version -V.Available with biplanar structures only.Not available with Structure codes LL, LM, LC, LD, L2, L3, L6, or L7. A vent screw in the side of the process cover is standard with these structures.Not available with optional IEC 61518 Construction codes -D1 through -D9.Not available with Span codes G and H.Available only with structures that have inert fill and are not prepared for seals.After units are cleaned and reassembled for oxygen service, they are not rechecked for accuracy. This may affect performance for DP and biplanar GP transmitters.
