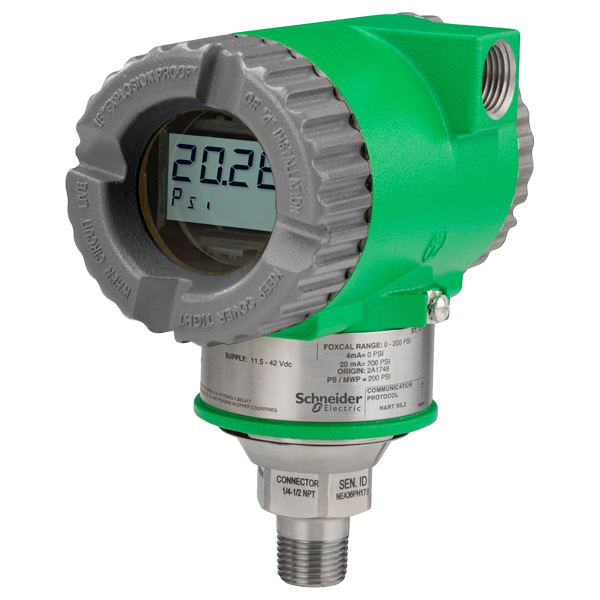

Ordering Information Model(1) IGP05S Gauge Pressure Transmitter, Value Tier Electronics Versions/Output Signals -T HART and 4 to 20 mA with SIL 2 Structure — Biplanar (Vented Low Side Process Cover and Diaphragm) B2 316 ss Cover; 316L ss Diaphragm; Silicone Fill Span Limits D With -T Electronics: 26 and 2070 kPa (3.75 and 300 psi)(2)With -V Electronics: 69 and 2070 kPa (10 and 300 psi)(2) Conduit Connection and Housing Material 1 1/2 NPT Conduit Connection, Both Sides, Aluminum Housing Electrical Certifications AP ATEX multiple certifications (includes ATEX Codes AA, AD and AN)(3)(4) Options for Digital Indicator with Pushbuttons -L1 Digital Display, Pushbuttons and Window Cover(4) Miscellaneous Optional Selections -T Supplemental Customer Tag (Stainless Steel Tag Wired onto Transmitter) Refer to Accuracy (Includes Linearity, Hysteresis, and Repeatability), page 33 for accuracy specifications.Span limit, maximum working pressure, maximum overrange pressure, and maximum static pressure (d/p) are derated for optional IEC 61518 Construction and optional Bolting except for codes -D3, -D7, and -B2. Option -D1 is derated to 2320 psi. Options -D5 and -B1 are derated to 2175 psi. Options -D2, -D4, -D6, and -D8 are derated to 1500 psi. Option -B3 is derated to 2900 psi.Available with all biplanar structures and only the following Direct Connect Structure codes: 52, 53, 60, 61, 90, 91, 92, 93, F2, F3, F4, F5, D5, D6, S5, S6, SH, SJ, 24, 26, and 28.Not available with Electronics Version -V.
