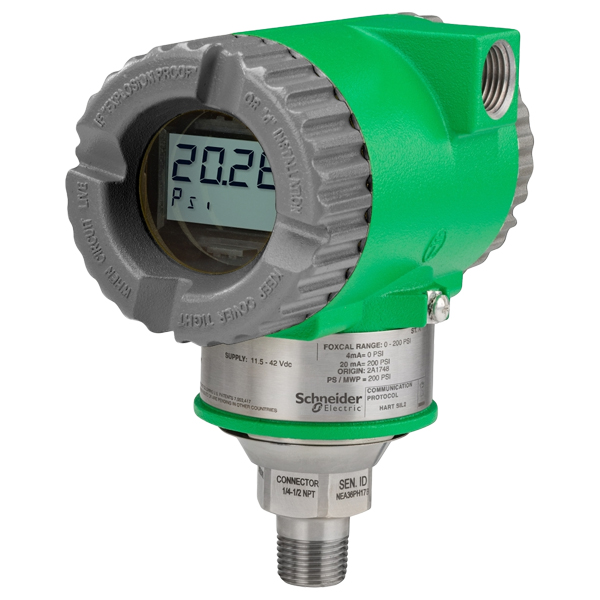

Ordering Information Model(1) IGP05S Gauge Pressure Transmitter, Value Tier Electronics Versions/Output Signals -T HART and 4 to 20 mA with SIL 2 Structure — Direct Connect Flameproof 52 316L ss Process Sensor; 316L ss Diaphragm; Silicone Fill; 1/2 NPT Ext. Conn.; 1/4 NPT Int. Conn. Span Limits E 0.034 and 13.8 MPa (5 and 2000 psi) Conduit Connection and Housing Material 1 1/2 NPT Conduit Connection, Both Sides, Aluminum Housing Electrical Certifications FD FM Classes I, II and III Division 1 explosion proof, dust-ignition proof, Zone approved AEx d IIC(2) Options for Digital Indicator with Pushbuttons -L1 Digital Display, Pushbuttons and Window Cover(3) Refer to Accuracy (Includes Linearity, Hysteresis, and Repeatability), page 33 for accuracy specifications.Available with all biplanar structures and only the following Direct Connect Structure codes: 52, 53, 60, 61, 90, 91, 92, 93, F2, F3, F4, F5, D5, D6, S5, S6, SH, SJ, 24, 26, and 28.Not available with Electronics Version -V.
