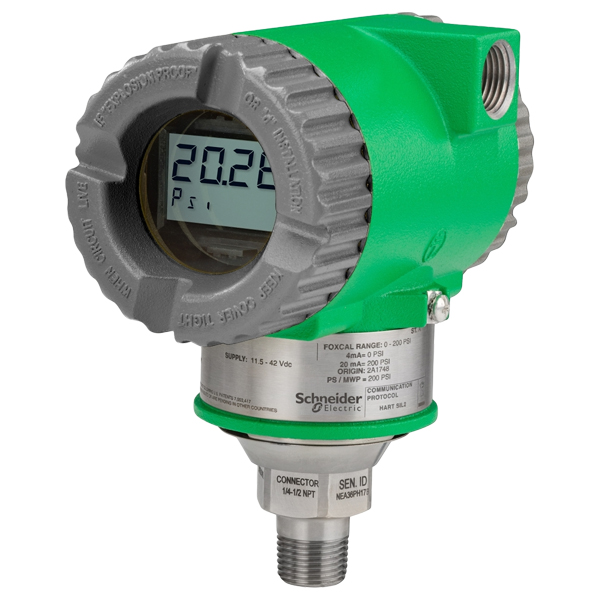

IGP05S-T52D1FP-M8L1V3T

Ordering Information Model(1) IGP05S Gauge Pressure Transmitter, Value Tier Electronics Versions/Output Signals -T HART and 4 to 20 mA with SIL 2 Structure — Direct Connect Flameproof 52 316L ss Process Sensor; 316L ss Diaphragm; Silicone Fill; 1/2 NPT Ext. Conn.; 1/4 NPT Int. Conn. Span Limits D 3.4 and 1380 kPa (0.5 and 200 psi) Conduit Connection and Housing Material 1 1/2 NPT Conduit Connection, Both Sides, Aluminum Housing Electrical Certifications FP FM multiple certifications (includes FM Codes FA, FD or FN)(2) Optional Mounting Bracket Sets -M8 Painted Steel Bracket for Flameproof Direct Connect Sensor Structures(3) Options for Digital Indicator with Pushbuttons -L1 Digital Display, Pushbuttons and Window Cover(4) Optional Vent Screw and Block and Bleed Valve -V3 Block and Bleed Valve, 316 ss(5)(6)(7) Miscellaneous Optional Selections -T Supplemental Customer Tag (Stainless Steel Tag Wired onto Transmitter) Refer to Accuracy (Includes Linearity, Hysteresis, and Repeatability), page 33 for accuracy specifications.Available with all biplanar structures and only the following Direct Connect Structure codes: 52, 53, 60, 61, 90, 91, 92, 93, F2, F3, F4, F5, D5, D6, S5, S6, SH, SJ, 24, 26, and 28.Available only with flameproof Direct Connect Structure codes, excluding D5 and D6.Not available with Electronics Version -V.Not available with biplanar structures.Not available with option -G.Available only with structures that have 1/2 NPT external connections.
