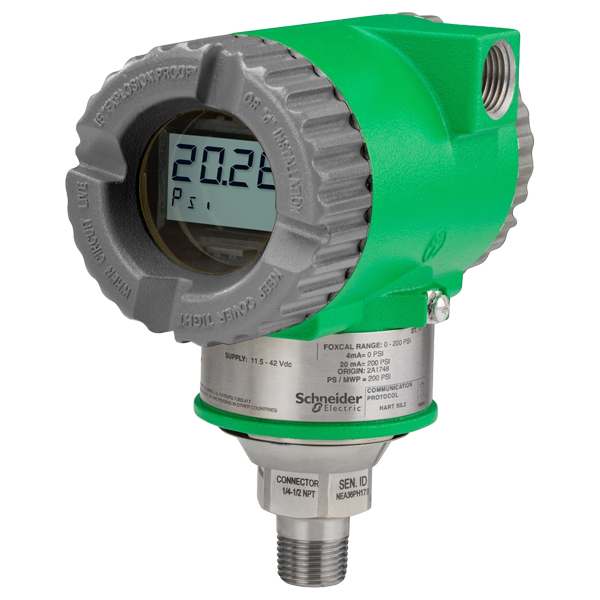

Ordering Information Model(1) IGP05S Gauge Pressure Transmitter, Value Tier Electronics Versions/Output Signals -T HART and 4 to 20 mA with SIL 2 Structure — Direct Connect(2) 22 316L ss Process Sensor; 316L ss Diaphragm; Silicone Fill; 1/2 NPT Ext. Conn.; 1/4 NPT Int. Conn. Span Limits E With -T Electronics: 0.034 and 13.8 MPa (5 and 2000 psi)With -V Electronics: 0.69 and 13.8 MPa (100 and 2000 psi) Conduit Connection and Housing Material 1 1/2 NPT Conduit Connection, Both Sides, Aluminum Housing Electrical Certifications FM FM multiple certifications (includes FM Codes FA or FN) Optional Mounting Bracket Sets -M2 Stainless Steel Bracket, Stainless Steel Bolts, 1/2 NPT, Direct Connect Only(2)(3)(4) Miscellaneous Optional Selections -T Supplemental Customer Tag (Stainless Steel Tag Wired onto Transmitter) Refer to Accuracy (Includes Linearity, Hysteresis, and Repeatability), page 33 for accuracy specifications.Not available with Electrical Certification codes that end in D or P.Not available with biplanar structures.Available with Conduit Connection and Housing Material codes 1 and 3 only.
