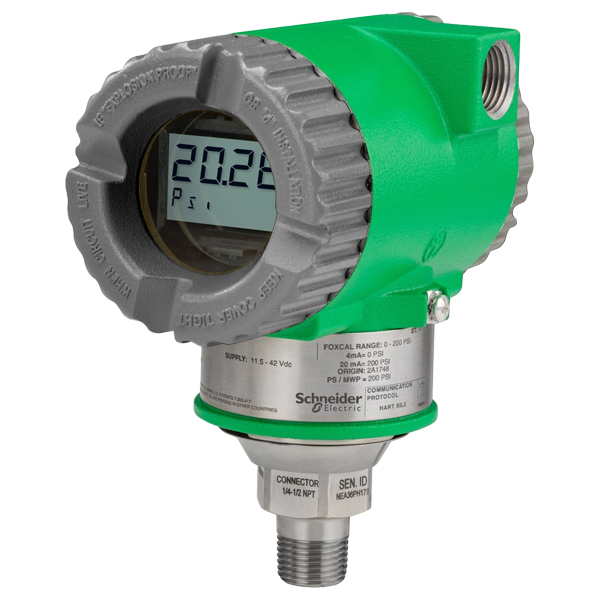

IGP05S-T22D1AM-M1L1 | Foxboro IGP05S Gauge Pressure Transmitter

Ordering Information Model(1) IGP05S Gauge Pressure Transmitter, Value Tier Electronics Versions/Output Signals -T HART and 4 to 20 mA with SIL 2 Structure — Traditional(2) 22 316 ss Cover; 316L ss Diaphragm; Silicone Fill; Max Static Pressure=25 MPa (3626 psi) Span Limits D 3.4 and 1380 kPa (0.5 and 200 psi) Conduit Connection and Housing Material 1 1/2 NPT Conduit Connection, Both Sides, Aluminum Housing Electrical Certifications AM ATEX multiple certifications (includes ATEX Codes AA and AN)(3) Optional Mounting Bracket Sets(4)(5) -M1 Standard Style Painted Steel Bracket with Plated Steel Bolts Options for Digital Indicator with Pushbuttons -L1 Digital Display, Pushbuttons and Window Cover(3) Refer to Accuracy (Includes Linearity, Hysteresis, and Repeatability), page 33 for accuracy specifications.Maximum static pressure can be derated by optional selections.Not available with Electronics Version -V.Not available with Structure codes F1, F2, F3, and F4 (direct connect seal).Not available with Low Profile (LP1 and LP2) structures.
