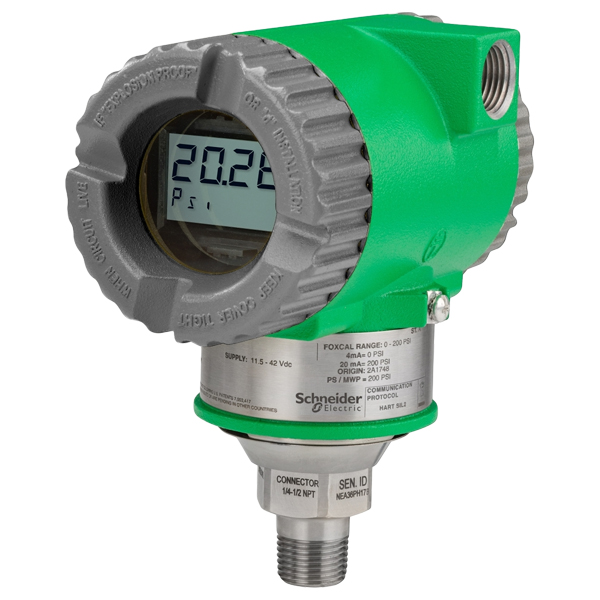

Ordering Information Model(1) IGP05S Gauge Pressure Transmitter, Value Tier Electronics Versions/Output Signals -T HART and 4 to 20 mA with SIL 2 Structure — Traditional(2) 22 316 ss Cover; 316L ss Diaphragm; Silicone Fill; Max Static Pressure=25 MPa (3626 psi) Span Limits D 3.4 and 1380 kPa (0.5 and 200 psi) Conduit Connection and Housing Material 1 1/2 NPT Conduit Connection, Both Sides, Aluminum Housing Electrical Certifications AA ATEX intrinsically safe, Ex ia IIC Optional Mounting Bracket Sets(3)(4) -M2 Stainless Steel Bracket, Stainless Steel Bolts, 1/2 NPT, Direct Connect Only(5)(6)(7) Refer to Accuracy (Includes Linearity, Hysteresis, and Repeatability), page 33 for accuracy specifications.Maximum static pressure can be derated by optional selections.Not available with Structure codes F1, F2, F3, and F4 (direct connect seal).Not available with Low Profile (LP1 and LP2) structures.Not available with biplanar structuresNot available with Electrical Certification codes that end in D or PAvailable with Conduit Connection and Housing Material codes 1 and 3 only.
