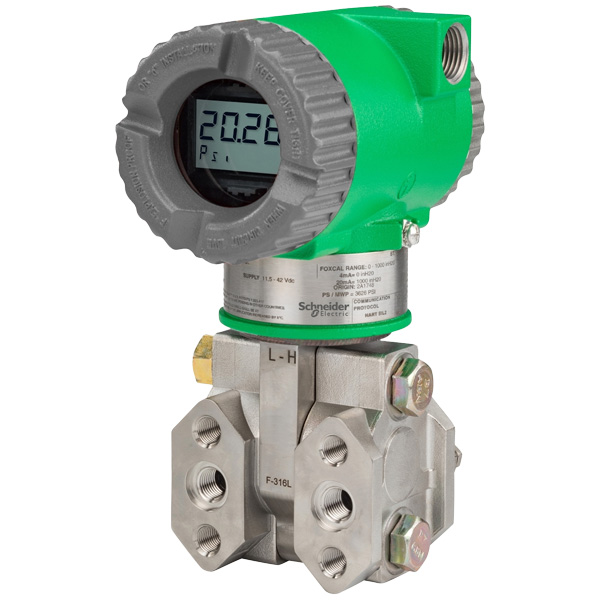

Ordering Information Model IDP10S Differential Pressure Transmitter, Advanced Tier with FoxCal™ Electronics Versions/Output Signal -T HART and 4 to 20 mA with SIL 2 Transmitter with Traditional Structure(1) 26 316 ss Cover; C276 Diaphragm; Silicone Fill; Max Static Pressure=25 MPa (3626 psi) Span Limits B 0.12 and 50 kPa; 0.5 and 200 inH2O; 1.2 and 500 mbar Process Connector Type (Same Material as the Process Cover) 0 None Conduit Connection and Housing Material 6 M20 Conduit Connection, Both Sides, 316 ss Housing Electrical Certifications D Optional Mounting Bracket Sets(2)(3) -M2 Standard Style Stainless Steel Bracket with Stainless Steel Bolts Options for Digital Indicator with Pushbuttons -L1 Digital Display, Pushbuttons and Window Cover Optional SIL 2 Selections(4) -S2 Red Cover for SIL 2 on Electronics/Indicator Side of Housing(5) Optional Bolting (Process Covers and Process Connectors)(6)(7)(8)(9) -B1 316 ss Bolts and Nuts (high corrosion protection; MWP derated to 2175 psi)(10) Optional Electronics Housing Features -Z1 External Zero Adjustment Optional Manifold Configurations -H2 Manifold Mounted to Transmitter and Pressure Tested (Certificate) Maximum static pressure can be derated by optional selections.Not available with Low Profile (LP1 and LP2) structures.Not available with Structure codes 78 and 79 (PVDF process covers).Available only with Electronics Version -T.Not available with Electronics Version -M.Not available with Structure codes 78 and 79 (PVDF process covers).Not available with optional IEC 61518 Construction codes -D1 through -D9.For stainless steel bolts with IEC 61518 construction, specify -D5 to -D9, as required, instead of -B1 or -B2.Not available with structures that have Monel process covers.See Maximum Static, Overrange, and Proof Pressure Ratings, page 27 for pressure deratings when certain IEC 61518 options and Bolting Options -B1 or -B3 are specified.
