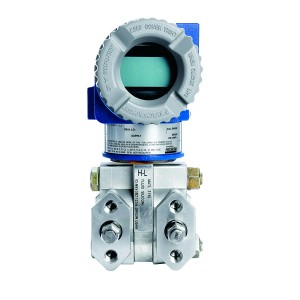

Ordering Information Model IDP10S Intelligent Differential Pressure Transmitter Electronics Versions/Output Signal -T HART and 4 to 20 mA with SIL 2 Transmitter with Traditional Structure(1) 23 316 ss Cover; 316L ss Diaphragm; Inert Fill; Max Static Pressure=25 MPa (3626 psi) Span Limits (Differential Pressure Units) B inH2O (at 68°F): 0.5 and 200kPa: 0.12 and 50mbar: 1.2 and 500 Process Connector Type (material is the same as the process cover material) 2 1/2 NPT(2) Conduit Connection and Housing Material 1 1/2 NPT Conduit Connection, Aluminum Housing Electrical Certifications FM FM multiple certifications (includes FM Codes FA or FN) Optional Display, Internal Pushbuttons, and Cover -L1 Digital Display, Pushbuttons and Window Cover Maximum static pressure can be derated by optional selectionsNot available with Structure Codes 78 and 79.
