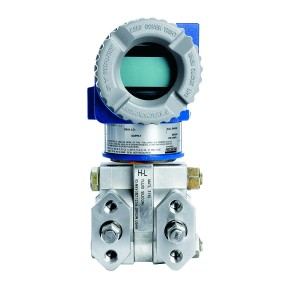

Ordering Information Model IDP10S Differential Pressure Transmitter, Advanced Tier with FoxCal™ Electronics Versions/Output Signal -T HART and 4 to 20 mA with SIL 2 Transmitter with Traditional Structure(1) 22 316 ss Cover; 316L ss Diaphragm; Silicone Fill; Max Static Pressure=25 MPa (3626 psi) Span Limits C 0.62 and 250 kPa; 2.5 and 1000 inH2O; 6.2 and 2500 mbar Process Connector Type (Same Material as the Process Cover) 0 None Conduit Connection and Housing Material 1 1/2 NPT Conduit Connection, Both Sides, Aluminum Housing Electrical Certifications ZZ No certification Optional Mounting Bracket Sets(2)(3) -M1 Standard Style Painted Steel Bracket with Plated Steel Bolts Options for Digital Indicator with Pushbuttons -L1 Digital Display, Pushbuttons and Window Cover Maximum static pressure can be derated by optional selections.Not available with Low Profile (LP1 and LP2) structures.Not available with Structure codes 78 and 79 (PVDF process covers).
