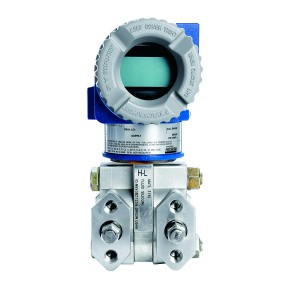

Ordering Information Model IDP Differential Pressure Transmitter Tier 10S Advanced Performance(1) with FoxCal™ Electronics Versions/Output Signals -T HART and 4 to 20 mA with SIL 2 Structure — Traditional(2) 22 316 ss Cover; 316L ss Diaphragm; Silicone Fill; Max Static Pressure=25 MPa (3626 psi) Span Limits B With -T or -F Electronics: 0.12 and 50 kPa; 0.5 and 200 inH2O; 1.2 and 500 mbarWith -V Electronics: 0.87 and 50 kPa; 3.5 and 200 inH2O; 8.7 and 500 mbar Process Connector Type (Same Material as the Process Cover) 2 1/2 NPT(3)(4) Conduit Connection and Housing Material 1 1/2 NPT Conduit Connection, Both Sides, Aluminum Housing Electrical Certifications FP FM multiple certifications (includes FM Codes FA, FD or FN) Refer to PSS 2A-1S10 A for accuracy specifications.Maximum static pressure can be derated by optional selections.Not available with Structure codes 78 and 79 (PVDF process covers).Not available with structures that have seals on both sides.
