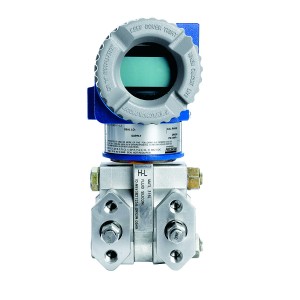

Ordering Information Model IDP10S Intelligent Differential Pressure Transmitter Electronics Versions and Output Signal -T HART and 4 to 20 mA Transmitter with Traditional Structure(1) 22 Static Pressure: 3626 psiCover Material: 316 ssSensor Diaphragm Material: 316L ssSensor Fill Sensor: Silicone Span Limits (Differential Pressure Units) B inH2O (at 68°F): 0.5 and 200kPa: 0.12 and 50mbar: 1.2 and 500 Process Connector Type (material is the same as the process cover material) 2 1/2 NPT(2) Conduit Connection and Housing Material 1 1/2 NPT Conduit Connection, Aluminum Housing Electrical Certifications FA FM Classes I, II, and III Division 1 intrinsically safe, AEx ia IIC Mounting Sets -M1 Standard Style Painted Steel Bracket with Plated Steel Bolts Optional Display, Internal Pushbuttons, and Cover -L1 Digital display, pushbuttons, and window cover Inert fill fluid is not available at this time.Not available with Structure Codes 78 and 79.
