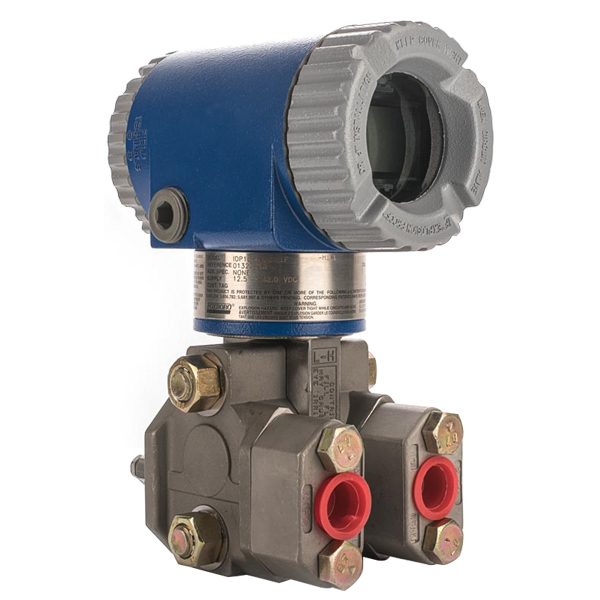

IDP10-T23C23E-M1L1X2B2 | Foxboro Pressure Transmitter [DISCONTINUED]

Product Number: IDP10-T23C23E-M1L1X2B2Ordering InformationModel: IDP10 - I/A Series, Electronic d/p Cell Transmitter for Differential Pressure MeasurementElectronics Versions and Output Signal: -T - Intelligent; Digital, HART and 4 to 20 mA (Version -T)Structure Code - Transmitter with Traditional Structure: 23Covers: 316 ssSensor: 316 ssFill Fluid: InertSpan Limits (Differential Pressure Units): CkPa: 7 and 210inH2O: 28 and 840mbar: 70 and 2100Process Connector Type (Material Same as Process Cover Material)¹: 2 - 1/2 NPT, Not with Structure Codes 78 or 79, or pressure sealsConduit Connection and Housing Material: 3 - 1/2 NPT Conduit Connection, 316 ss HousingElectrical Safety: E - ATEX II 1 GD, EEx ia IIC, Zone 0; or II 1/2 GD, EEx ib IIC, Zone 0/1Mounting Bracket Set²: -M1 - Standard Style Painted Steel Bracket with Plated Steel BoltsDigital Indicator with Pushbuttons: L1 - Digital Indicator, Pushbuttons, and Window CoverCleaning and Preparation: X2 - Cleaned and Prepared for Oxygen Service - for Inert Filled Sensors OnlyBolting for Process Covers/Connectors³: B2 - 17-4 ss Bolts and NutsNOTE:Select Code "0" if a pressure seal is specified. Otherwise select Code 1 through 7.Mounting sets not offered with direct connect (flange mount) seals.Not available with DIN construction options. For stainless steel bolts with DIN construction, specify -D5 to -D9, as required.When -X3 is specified, the standard bolting is replaced with 17-4 ss bolts and nuts. Therefore, there is no need to specify.Option -B2 when selecting the Chlorine Service Option -X3.
