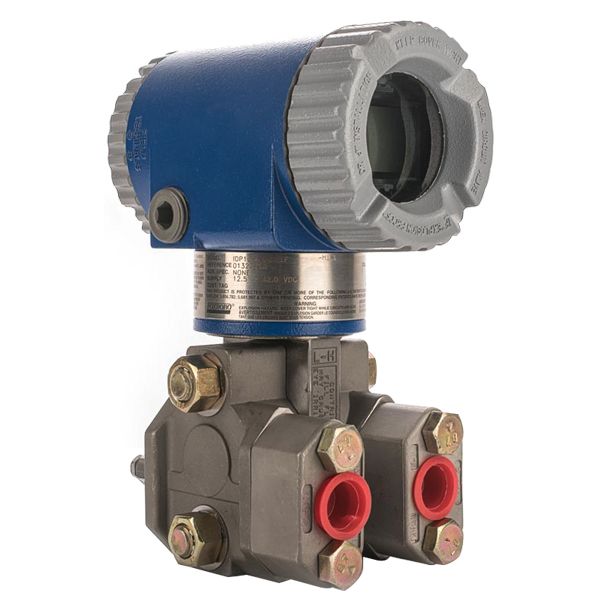

IDP10-T22B21E-M1V | Foxboro Pressure Transmitter [DISCONTINUED]

Product Number: IDP10-T22B21E-M1VOrdering InformationModel: IDP10 - I/A Series, Electronic d/p Cell Transmitter for Differential Pressure MeasurementElectronics Versions and Output Signal: -T - Intelligent; Digital, HART and 4 to 20 mA (Version -T)Transmitter with Traditional Structure: 22 - [Covers] 316 ss[Sensor] 316L ss[Fill Fluid] SiliconeSpan Limits (Differential Pressure Units): B - [kPa] 0.87 and 50[inH2o] 3.5 and 2000[mbar] 8.7 and 500Process Connector Type (Material Same as Process Cover Material)¹: 2 - 1/2 NPT, Not with Structure Codes 78 or 79, or pressure sealsConduit Connection and Housing Material: 1 - 1/2 NPT Conduit Connection, Aluminum HousingElectrical Safety: E - ATEX II 1 GD, EEx ia IIC, Zone 0; or II 1/2 GD, EEx ib IIC, Zone 0/1Optional Selections: -M1 - [Mounting Bracket Set²] Standard Style Painted Steel Bracket with Plated Steel Bolts (not available with LP1 structure)Vent Screw in Process Cover: V - Supply Vent Screw in Side of Each Process CoverNOTE:Select Code "0" if a pressure seal is specified. Otherwise select Code 1 through 7.Mounting sets not offered with direct connect (flange mount) seals.
