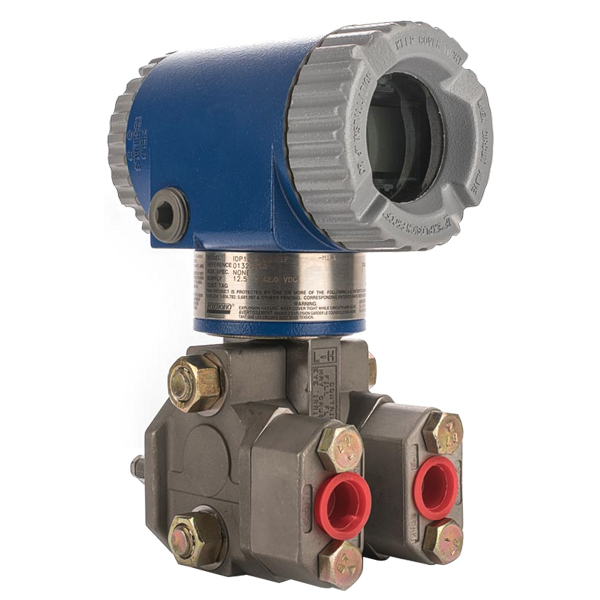

IDP10-T22A01C-L1K1 | Foxboro Pressure Transmitter [DISCONTINUED]

Product Number: IDP10-T22A01C-L1K1Ordering InformationModel: IDP10 - I/A Series, Electronic d/p Cell Transmitter for Differential Pressure MeasurementElectronics Versions and Output Signal: -T - Intelligent; Digital, HART and 4 to 20 mA (Version -T)Transmitter with Traditional Structure: 22 - [Covers] 316 ss[Sensor] 316L ss[Fill Fluid] SiliconeSpan Limits (Differential Pressure Units): A¹ - [kPa] 0.12 and 7.5[inH2O] 0.5 and 30[mbar] 1.2 and 75Process Connector Type (Material Same as Process Cover Material)²: 0 - - For d/p: No connectors; both covers tapped for 1/4 NPT (316 ss only, no side vents)- Flange Mount Hi Side: 1/2 NPT. 316 ss Process Connector on Lo Side (F1 and F2 only)- Flange Mount Hi Side: No connectors; both sides prepared for seals (F3 and F4 only)- Two Remote Seals: No connectors; both covers tapped for capillary connection (S1, S2, SA, SB only)- One Remote Seal: 1/2 NPT., 316 ss Process Connector on Side Opposite Seal (S3 to S6, SC to SF only)Conduit Connection and Housing Material: 1 - 1/2 NPT Conduit Connection, Aluminum HousingElectrical Safety: C - CSA Certified Division 1 intrinsically safe, explosionproof, dust-ignitionproof, and Division 2, Classes I, II, and IIIDigital Indicator with Pushbuttons: -L1 - Digital Indicator, Pushbuttons, and Window CoverInstruction Books: K1 - Without Instruction Book and DVD; only "Getting Started" brochure is supplied.NOTE:Span Limit Code A is not available with pressure seals, except for Sanitary Spud Seals Models PSSSR-.4 and PSSST-.4.Select Code "0" if a pressure seal is specified. Otherwise select Code 1 through 7.
