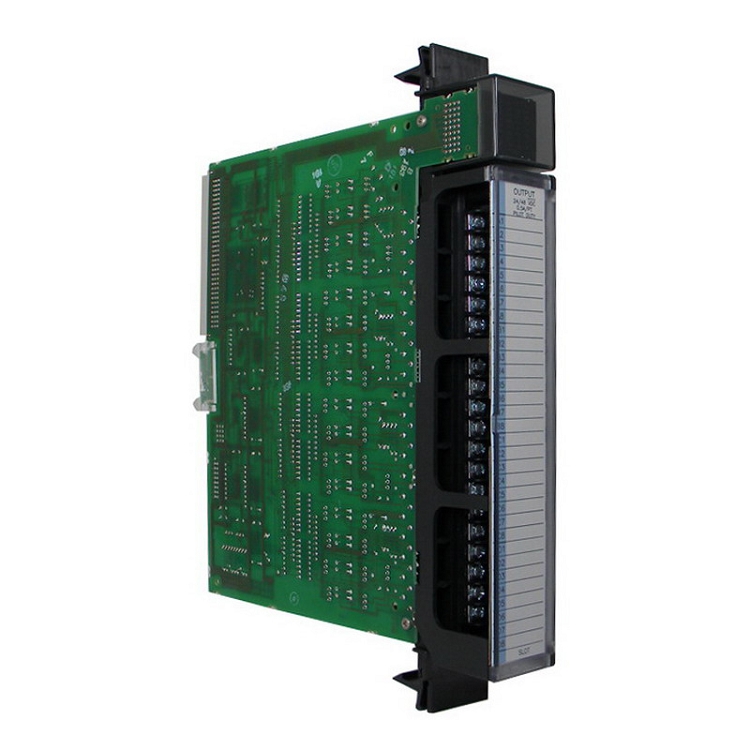

IC697MDL750 | GE Fanuc Discrete Output Module

Part Number: IC697MDL750ModelIC697MDL750Rated Voltage:24 or 48 volts DVOutput per Module:32 (four groups of 8 outputs each)Isolation:1500 volts - any output to backplane500 volts between input groupsOutput Voltage Range:20 to 60 voltsOutput Current:0.5 amps maximum per point2 amps maximum per groupOutput Characteristics: Inrush Current: Output Voltage Drop: Response Time-On: Response Time-Off: Output Leakage:10 amps maximum for 20 ms1 volt (2 ohms) maximum1 ms maximum1 ms maximum1 mA maximumCurrent Required from 5V Bus:0.25 ampVMESystem designed to support the VME standard C.1(1) Refer to GFK-0867B, or later for product standards and general specifications. For installation requiring compliance to more stringent requirements (for example, FCC or European Union Directives), refer to Installation Requirements for Conformance to Standards.
