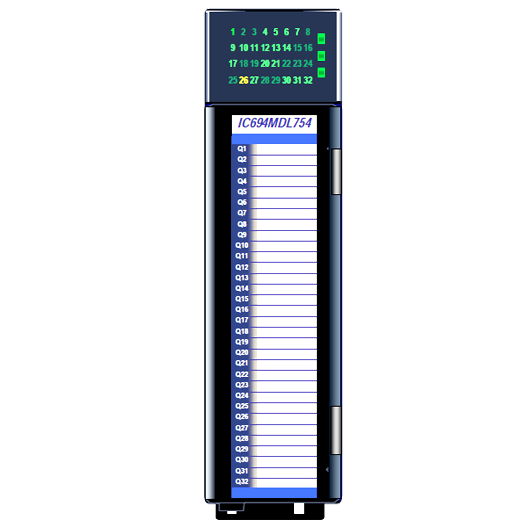

IC694MDL754 | GE Fanuc RX3i DC Voltage Output Module

Product Number: IC694MDL754Model: RX3i DC Voltage Output ModuleManufacturer: GE FanucCondition: New & Original in Factory PackingFactory Warranty: 12 MonthsSpecificationsRated Voltage: 12/24 volts DC, nominalOutput Voltage Range: 10.2 to 30 volts DCOutputs per Module: 32 (two isolated groups of 16 outputs each)Isolation: Field to Backplane (optical) and to Frame Ground: 250 VAC continuous; 1500 VAC for 1 minute Group to Group: 250 VAC continuous; 1500 VAC for 1 minuteModule ID: 0x059hOutput Current: 0.75 Amps per pointPower Consumption: 300 mA (maximum) from 5 volt bus on backplane;Thermal Derating: No derating at 24VDC. At 30VDC, outputs are derated above 42 degrees C as shown below.External Power Supply: +12 VDC to +30 VDC, 12/24 VDC nominalExternal Power Supply Current Required (not including load current): Module version CC and later: 72 mA/group with all outputs commanded Off, 132 mA/group with all outputs commanded ON Module version BC and earlier: 72 mA/group with all outputs commanded OFF, 100 mA/group with all outputs commanded ONOutput Characteristics Inrush Current: 3 Amps supplied for 10ms without ESCP trip Output Voltage Drop: 0.3 volt DC maximum Steady-state overcurrent trip: 5 Amps typical per point Output Leakage Current: 0.1mA maximum On Response Time: 0.5ms maximum Off Response Time: 0.5ms maximum Protection: Short-circuit protection, overcurrent protection, overtemperature protection, all with auto recovery.
