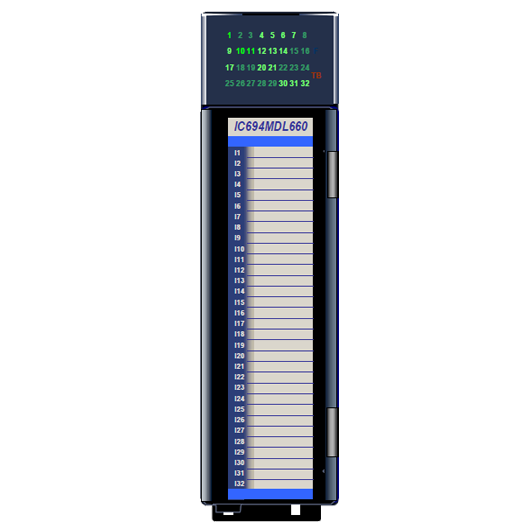

IC694MDL660 | GE Fanuc 24 VDC Positive/Negative Logic Input Module
Артикул: QT-19
от 330 755 ₸
В наличии: 1
Предложения складов
Склад
Цена
В тенге
Остаток
Доставка
склад-3
698,40 USD
330 755 ₸
1
30–45 дней
Характеристики
Condition
New & Original in Factory Packing
Estimated Lead Time
Usually Ships in 7 - 10 Working Days
Factory Warranty
12 Months
ID каталога
2988
Manufacturer
GE Fanuc
Model
24 VDC Positive/Negative Logic Input Module
Part Number
IC694MDL660
Shipping Weight
2 Kg
Артикул
IC694MDL660
Описание
SpecificationsRated Voltage: 24 volts DCInput Voltage Range: 0 to 30 volts DCInputs per Module: 32 (four isolated groups of 8 inputs)Isolation: Field to Backplane (optical): 250 VAC continuous; 1500 VAC for one minute Group to Group: 250VAC continuous; 1500 VAC for one minuteInput Current: 7.0 mA per point (typical) at rated voltageModule ID: 0x058hInput Characteristics: On state Voltage: 11.5 to 30 VDC Off state Voltage: 0 to 5 VDC On state Current: 3.2mA minimum Off state Current: 1.1mA maximumInput Filter Times: 0.5ms, 1.0ms, 2.0ms, 5ms, 10ms, 50ms and 100ms, selectable per module On response time: 0.5ms, 1.0ms, 2.0ms, 5.0ms, 10.0ms, 50.0ms & 100.0ms (as per filter setting) Off response time: 0.5ms, 1.0ms, 2.0ms, 5.0ms, 10.0ms, 50.0ms & 100.0ms (as per filter setting)Power Consumption: 300mA (all inputs on) from 5 volt bus on backplaneDiagnostics: Terminal block presence reported to RX3i CPU
