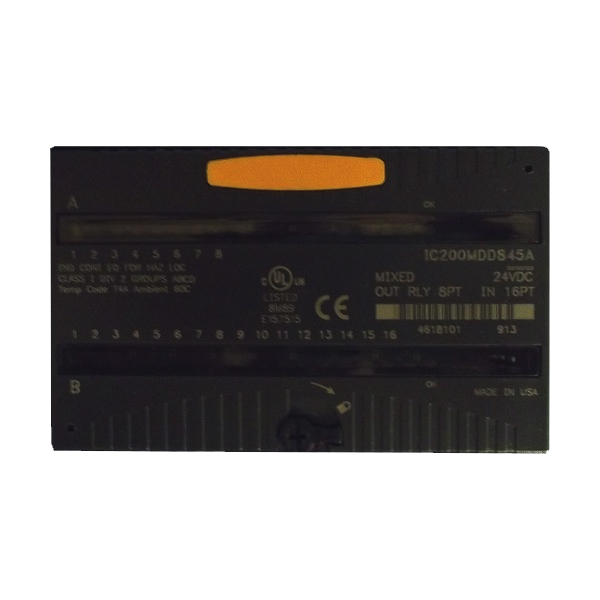

IC200MDD845 | GE Fanuc Positive Logic Isolated VersaMax

ModelIC200MDD845Product NameVersamAx Discrete MixedModules 24 VDC Positive Logic Input16/Output Relay 2.0A Isolated 8 pointsLifecycle StatusActiveInput Voltage24 VDCOutput Voltage0-125 VDC, 5/24/125 VDC nominal;0-265 VAC (47-63 Hz),120/240 VAC nominalNumber of Points16 in/8 outChannel to Channel IsolationYes, outputsLoad Current per Point2.0 A for 5-265 VAC, 2.0 A for 5-30 VDC,0.2 A for 31-125 VDCInput and Output Response Time - On/Off(ms)0.5 to 10ProtectionNo internal fuses or snubbersOn State Current2.0-5.5 mAOff State Current0-0.5 mAExternal Power Supply0-125 VDC, 5/24/125 VDC nominal;0-265 VAC (47-63 Hz), 120/240 VAC nominalInput Imperdance10 kOhms maximumLoad Current10 mA per point minimum2.0 A for 5 to 265 VAC maximum (resistive)2.0 A for 5 to 30 VDC maximum (resistive)0.2 A for 31 to 125 VDC maximum (resistive)5V Backplane Current Consumption (mA)270 maximumLED IndicatorsOne LED per point shows individual point on/off state (logic side); OK LED indicates backplane power is presentDimensions (W x H x D)110 mm (4.3 in) x 66.8 mm (2.63 in) x 50 mm (1.956 in),not including the height of the carrier or the mating connectors.
