Промышленное оборудование · GE Fanuc VersaMax Analog Input

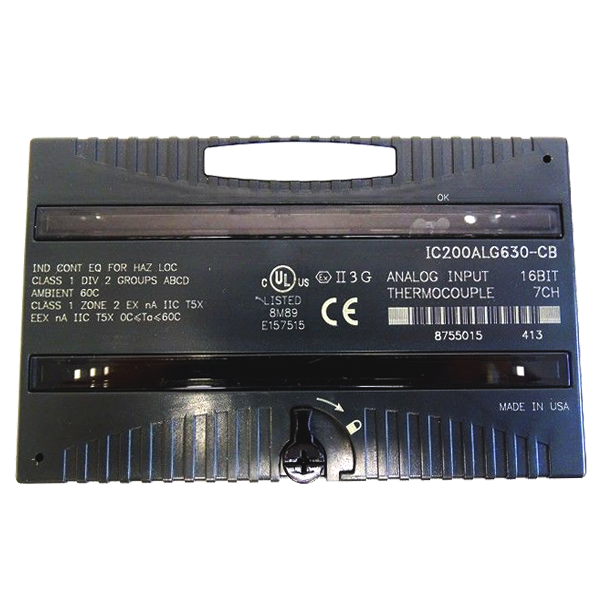

IC200ALG630 | GE Fanuc VersaMax Analog Input Module
Артикул: QT-142
от 387 018 ₸
В наличии: 1
Предложения складов
Склад
Цена
В тенге
Остаток
Доставка
склад-3
817,20 USD
387 018 ₸
1
30–45 дней
Характеристики
Estimated Lead Time
Usually Ships in 1 - 7 Working Days
ID каталога
135
Model
VersaMax Analog Input ModuleBrand: GE FanucTechnical SpecificationsModel: IC200ALG630Product Name: VersaMax Analog Input Module, 16 Bit Thermocouple, 7 ChannelLifecycle Status: ActiveInput Range: Thermocouple types: J, K, T, S, R, none (used for mV inputs)Number of Channels: 7Resolution: 15 bits plus signUpdate Rate: 60 Hz: approximately 60 milliseconds per channel; 50 Hz: approximately 70 milliseconds per channelAccuracy at 25°C: On voltage measurement: ±0.2%; On temperature measurement: ±0.15%
Part Number
IC200ALG630
Shipping Weight
2 Kg
Артикул
IC200ALG630
Описание
Part Number: IC200ALG630Model: VersaMax Analog Input ModuleBrand: GE FanucTechnical SpecificationsModel: IC200ALG630Product Name: VersaMax Analog Input Module, 16 Bit Thermocouple, 7 ChannelLifecycle Status: ActiveInput Range: Thermocouple types: J, K, T, S, R, none (used for mV inputs)Number of Channels: 7Resolution: 15 bits plus signUpdate Rate: 60 Hz: approximately 60 milliseconds per channel; 50 Hz: approximately 70 milliseconds per channelAccuracy at 25°C: On voltage measurement: ±0.2%; On temperature measurement: ±0.15% 5V Backplane Current Consumption (mA): 125 maximum3.3V Backplane Current Consumption (mA): 125 maximumLED Indicators: OK LED: green indicates backplane power is present. Amber indicates module fault.Dimensions (W x H x D): 110 mm (4.3 in) x 66.8 mm (2.63 in) x 50 mm (1.956 in), not including the height of the carrier or the mating connectors
