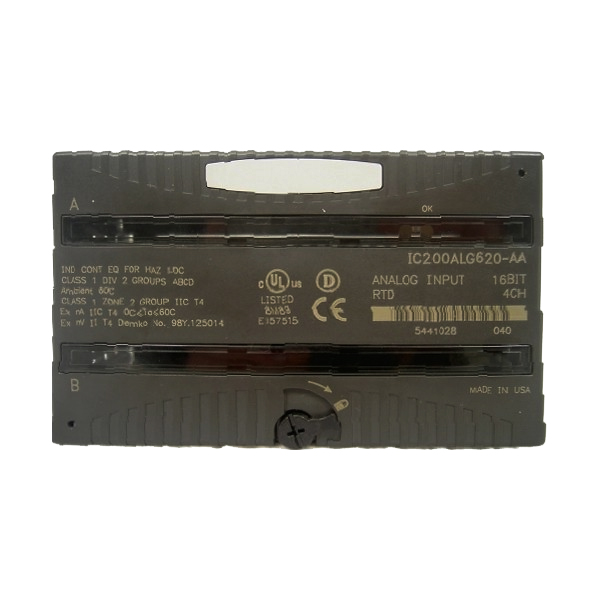

IC200ALG620 | GE Fanuc VersaMax Analog Input Module

Technical SpecificationsModel: IC200ALG620Product Name: VersaMax Analog Input Module, 16 Bit RTD, 4 ChannelLifecycle Status: ActiveInput Range: RTD types: 25, 100, and 1000 ohm platinum; 10, 50, and 100 ohm copper and; 120 ohm nickel 604 ohms nickel/ironNumber of Channels: 4Resolution: 15 bits plus signUpdate Rate: 60 Hz: approximately 210 milliseconds per channel; 50 Hz: approximately 230 milliseconds per channelAccuracy at 25°C: on voltage measurement: ±0.15% on resistance measurement; on temperature measurement: ±0.15% on RTD (temperature measurement)5V Backplane Current Consumption (mA): 125 maximum3.3V Backplane Current Consumption (mA): 125 maximumLED Indicators: OK LED: green indicates backplane power is present. Amber indicates module fault.Dimensions (W x H x D): 110 mm (4.3 in) x 66.8 mm (2.63 in) x 50 mm (1.956 in), not including the height of the carrier or the mating connectors
