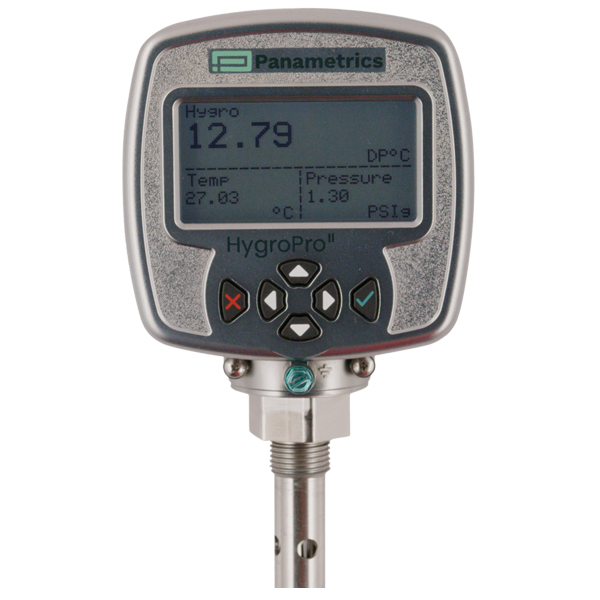

HYGROPRO II-4-1-0-0-0-0-0-0-0 | Panametrics HygroPro II Absolute Moisture Transmitter

Intrinsically safe, microprocessor-based electronics, alpha-numeric/graphical LCD display, user programmable, 3/4 inch-16 straight thread process connection with Viton O-Ring Version: Loop-powered; 12 to 30 VDC; Current (mA) output signal and RS485 serial comm., 2m black cablePressure Transducer on Probe: 30 to 300 PSIG pressure transducerLaboratory Services: NONE Cal Certification: NONEO-Ring Options: Standard Viton O-ring Material Certification: NONECalibration: Standard calibration, -80 to +10 C dew/frost point. Data from -110 to +20 C dew/frost point.Certification: US/Canada: Intrinsically Safe Class I, Division 1, Groups A, B, C and D T4 (Div 1/Zone 0 requires barrier - to be quoted separately); Class II, III Division 1, Groups E, F and G T4 (US Only); Class I, Zone 0, AEx ia IIC T4 Ga (US); Ex ia IIC T4 Ga (Canada)Features:Intrinsically safeAmbient to ppb-level moisture measurement using next-generation aluminum oxide moisture sensorBuilt-in temperature sensor for temperature compensationOptional pressure sensorCalibrations traceable to National Institute of Standards and Technology (NIST) or National Physical Laboratory (NPL) with the option of fully accredited calibration to ISO 17025Complete programming capability via User Interface that consists of integrated display and 6-button keypadAnalog and digital outputsHART communication over the 4 – 20 mA analog output Ordering Information Model HygroPro II Absolute Moisture Transmitter, intrinsically safe, microprocessor based electronics, alpha-numeric/graphical LCD display, user programmable, 3/4 inch-16 straight thread process connection with Viton Oring Version Loop-powered; 12 to 30 VDC; Current (mA) output signal and RS485 serial comm., 2m blue cable Pressure Transducer On Probe 30 to 300 PSIG pressure transducer Laboratory Services NONE Cal Certification NONE ORing Options Standard Viton O-ring Material Certification NONE Calibration Standard calibration, -80 to +10 C dew/frost point. Data from -110 to +20 C dew/frost point. Certification GENERAL PURPOSE/SAFE AREA Special NONE
