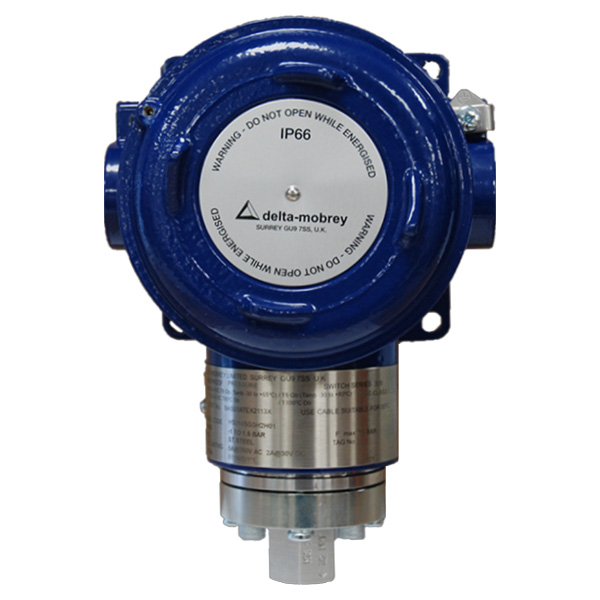

HS212GEB02J | Delta-Mobrey S21 Pressure Switch

Ordering Information Enclosure H ATEX Ex d IIC T6 Gb (-60 to +65°C), T5 Gb (-60 to +80°C) II 2 GD (ZONE 1)Gravity die-cast enclosure in aluminium-silicon alloy, epoxy painted.Suitable for outdoor use, IP66 / NEMA 4X. Models S21 Fixed Switching Differential.For applications up to 100 bar/1500 PSI. For maximum working pressure consult technical data sheet. Electrical Entry 2 1/2 NPT Internal Thread Material of Wetted Parts G 316 Stainless steel diaphragm and process connection with Nitrile O-Ring Seal. Setting Ranges EB 2.5 to 16 bar G Switch Options 02 Single Pole Double Throw.5 Amps @ 110/250 Volts AC.0.25 Amps 250 Volts DC 0.5 Amps 125 Volts DC (2 Amps @ 30 Volts DC. Not for UL/CSA). Process Connection J 1/2—14 NPT EXT
