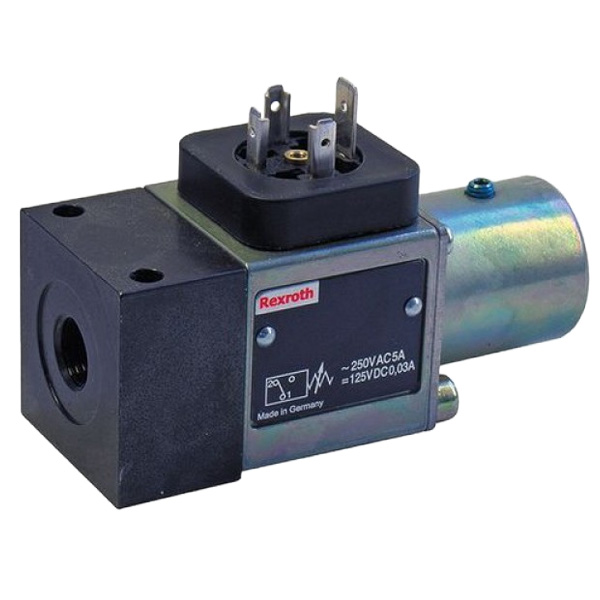

HED 8 OA-2X/50K14 | Rexroth Pressure Switch Type HED 8

50 bar, micro switch with NC contact/NO contact function, device connector DIN EN 175301-803 (large cubic connector)Features:For subplate mountingFor G1/4” pipeline installationFor flange connection according to ISO 16873As vertical stacking element in connection with sandwich plates according to ISO 44015 pressure ratingsSpindle with/without protective capSpindle with scale, with/without protective capRotary knob with scaleLockable rotary knob with scaleElectrical connectionWith valve connector of design A (large cubic connector)with M12 x 1 connectorMicro switch with NC/NO contact functionPotential-free switching of currents from 1 mA to 2 AUL approval for pressure ranges up to 350 bar Ordering Data Model HED8 Piston type pressure switch OA Pipeline installation 2X Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) 50 Max. pressure rating 50 bar Electrical connection K14¹ Without mating connector; connector DIN EN 175301-803 Mating connectors, separate order, see accessories
