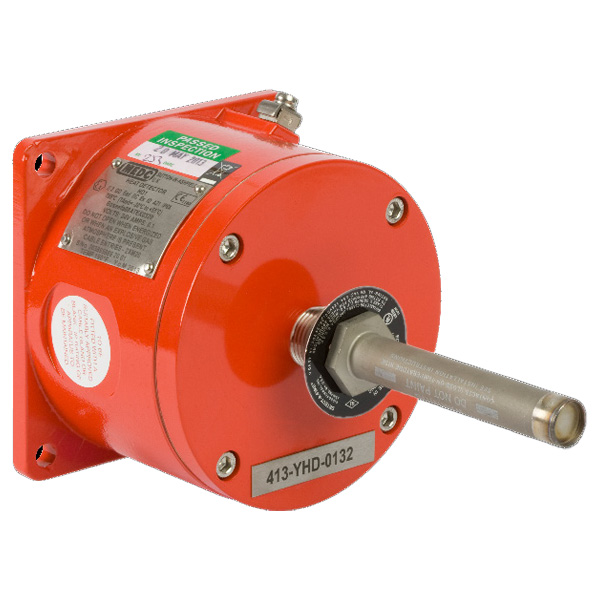

HD1BBD225EDPTG | MEDC HD1 Range Heat Detector

Description:HD1 range heat detector for use in hazardous areas. Fitted with Fenwal rate-compensated detector type 27121-20., EExd IIB T6 , ATEX approved Ex II 2GD. Enclosure: LM25 marine grade alloy. 2 x M20 entries as standard. SIL 2 Approval, Temperature setting: 225°F, Options: EOL Resistor (**TBA**)(Minimum Value 470 Ohm), Duty Label (**TBA**), (Exd) 1 x Certified Plug, Tag Label (**TBA**), Body Colour: GreyFeatures:Zone 0, Zone 1 and Zone 2 useATEX certifiedEExd IIB T3/T6Exd IIC T6EExem II T4/T6Ex ia IIC T4/T6IECEx certifiedEx ia IIC T4/T6 GaUL listed for USA and Canada:Class I, Div 2, Groups A, B, C DCQST certifiedCCOE certifiedSIL 2 certifiedIP66 & IP67Certified temperature:–20ºC to +125ºC (Exd)*–20ºC to +55ºC (Exem/UL)–55ºC to +55ºC (Exia)Stainless steel probeDetector temperature settings:60ºC to 385ºC, (140ºF to 725ºF)Marine grade alloy or GRP enclosureOptional stainless steel guard*Model dependent Ordering Requirements Model HD1 HD1 Range Heat Detector Certification B ATEX Type BD Ex d IIB Temp settings 225 225°F Options EDPT Resistor EOLBlanking plugTag label Finish G Grey
