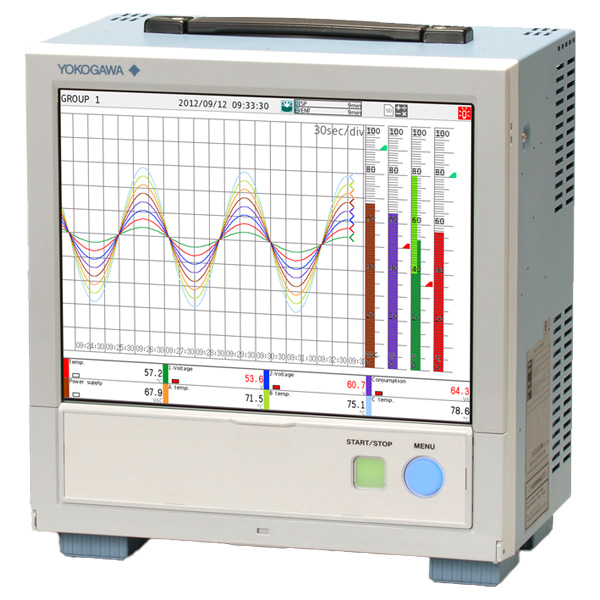

The Yokogawa GP10-1E1H/UH/US20/AH is a high-performance, portable paperless recorder part of the OpreX™ Data Acquisition family. Engineered for lab-bench and field-testing environments, this configuration features a multi-point touchscreen, advanced mathematical functions, and expanded USB capabilities to streamline complex data logging tasks. This SMARTDAC+ recorder supports high-speed measurement, modular I/O expansion, web-based remote monitoring, and secure data storage, making it suitable for mission-critical industrial applications. Ordering Information Model GP10 Paperless recorder (Portable type, Small display)(1) Type -1 Standard (Max. measurement channels: 100 ch) Display language E English, degF, DST (summer/winter time)(2) Power supply 1 100 V AC, 240 V AC(3) Power cord H Power cord GB standard Optional features /UH USB interface (Host 2 ports) Optional features (Analog input)(4)(5) /US20 With analog input module, 20ch (M3 screw terminal)(6) Optional features /AH Aerospace heat treatment To connect an expandable I/O, GM sub unit, you will need one expansion module for the GP.Digital input module have M3 screw terminals.Power code can be specified the suffix code D, F, R, Q, H, or N..Only one option can be specified.Universal type (Type Suffix Code: -U2). If you need the electromagnetic relay type (Type Suffix Code: -T1), current (mA) input type (Type Suffix Code: -C1), Low withstand voltage relay, type (Type Suffix Code: -L1), High-speed universal type (Type Suffix Code: -H0), 4-wire RTD/resistance type (Type Suffix Code: -R1), purchase it separately.If /UC20 or /US20 is specified, /CR11 cannot be specified for the GP10. Key Technical Specifications Feature Details Display 5.7-inch TFT color LCD (640 x 480 dots) Input Channels Up to 30 channels (main unit); expandable to 100 channels Memory 500 MB Internal Flash + External SD Slot (up to 32 GB) Protection Front panel IP65 compliant (dust and water-proof) Measurement Interval 100 ms (Shortest) Connectivity Modbus TCP/RTU, FTP, Web Server, EtherNet/IP Top Benefits for Industrial ApplicationsIntuitive Smart User InterfaceThe GP10 series pioneered the multi-point touch panel in industrial recorders. Users can swipe through historical data, pinch-to-zoom on waveforms, and even write freehand messages directly on the screen with a stylus to mark specific events during a test run. Advanced Math & Logic (/AH Option)The integrated math function allows for real-time processing of raw data. Calculate efficiency, thermal distribution, or specialized logic equations instantly, reducing the need for post-processing software. Secure Data Management (/US20 Option)With the /US20 internal storage option, your critical data is protected against network failures. It ensures seamless recording for high-stakes industries like Pharmaceuticals (21 CFR Part 11 compliant) and Aerospace (AMS2750F support).Flexible Networking & Remote MonitoringEasily monitor your processes from a PC or tablet via the built-in Web Server. The GP10 supports automated data transfer via FTP, ensuring your records are always backed up to a central server.
