Промышленное оборудование · E+H Liquiphant FTL51B-point Level

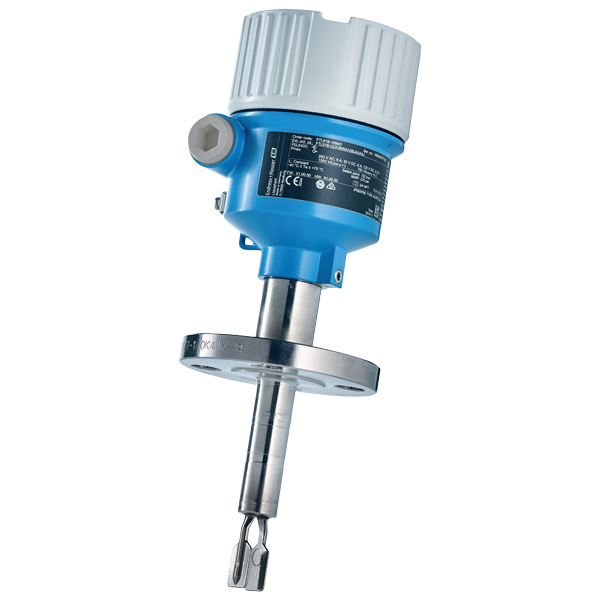

FTL51B-BDA4AMIAA3BJA1VBJ+LA | E+H Liquiphant FTL51B-point Level Switch

Артикул: QT-93631
от 861 555 ₸
В наличии: 0

Предложения складов

СкладЦенаВ тенгеОстатокДоставка

Характеристики

ConditionNew & Original in Factory Packing
Estimated Lead Time12 - 16 Weeks
Factory Warranty12 Months
ID каталога101649
ModelLiquiphant FTL51B-point Level SwitchBrand: Endress+Hauser
Part NumberFTL51B-BDA4AMIAA3BJA1VBJ+LA
Shipping Weight1 Kg
АртикулFTL51B-BDA4AMIAA3BJA1VBJ+LA
Срок поставки12 - 16 Weeks

Описание

Ordering Information Model FTL51B Liquiphant FTL51B-point Level Switch Approval BD ATEX/IEC II 1/2G, 2G Ex de IIC T6 Ga/Gb Output A4 FEL64, relay DPDT 19-253VAC/19-55VDC contact 253V/6A + test button Display; Operation A W/o; switch Housing; Material M Dual compartment L-shape; Alu, coated Electrical Connection I Thread NPT3/4, IP66/68 NEMA Type 4X/6P Application A Process max 150°C/302°F, max 64bar Surface Refinement A Standard Ra<3,2µm/126µin Type Of Probe 3 Short tube version Sensor Length; Material BJ Short tube version; 316L Process Connection, Sealing Surface A1 Thread ASME B1.20.1, NPT Process Connection VBJ 3/4", 316L Additional Approval LA SIL
