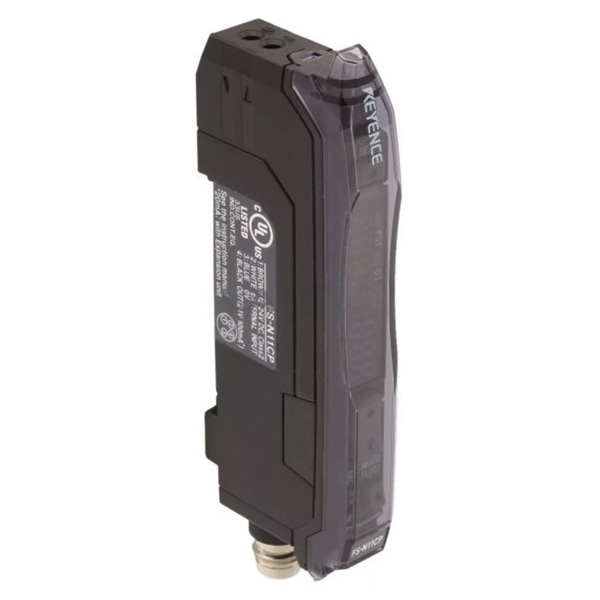

FS-N11CP | Keyence FS-N Series Fibre Amplifier

Specifications: Type Standard 1 outputM8 connector¹ Output PNP Main unit/Expansion unit Main unit Control output 1PNP open collector 24 V; 1 output max: 100 mA or less; 2 output total: 100 mA or less (used stand-alone)/20 mA or less (multiple connections); residual voltage 1 V or less External input 1Input time 2 ms (ON)/20 ms (OFF) or more (25 ms or more (ON/OFF) when external calibration is selected.) Light source Red, 4-element LED APC ON/OFF switchable (Factory setting: OFF) Response time 50 µs (HIGH SPEED) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER) /4 ms (ULTRA) /16 ms (MEGA) Number of interference prevention units 0 for HIGH SPEED; 4 for FINE; 8 for TURBO/SUPER/ULTRA/MEGA(When set to double, the number of interference-prevention units will be doubled.) Unit expansion Up to 16 units can be connected total (two output type is treated as two units) Use a cable length of 30 m or less for M8 connector types.
