Промышленное оборудование · Endress+Hauser

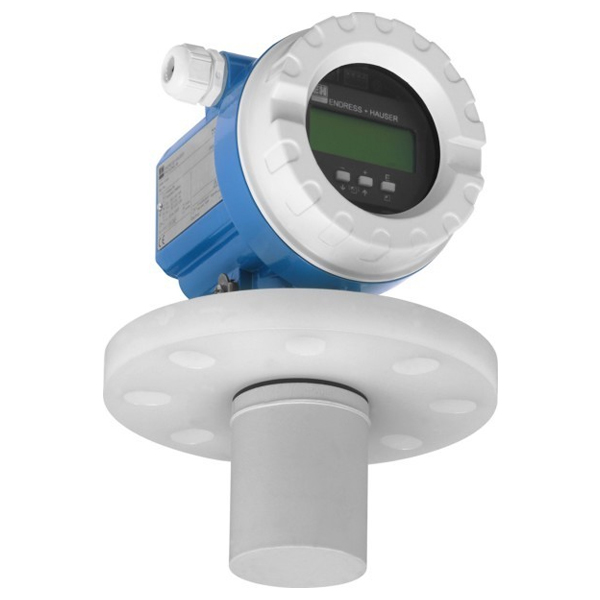

FMU42-ATB3A22A | E+H Ultrasonic Measurement Time-of-Flight Prosonic FMU42

Артикул: QT-89811
от 1 053 643 ₸
В наличии: 0

Предложения складов

СкладЦенаВ тенгеОстатокДоставка

Характеристики

ConditionNew & Original in Factory Packing
Estimated Lead Time12 - 16 Weeks
Factory Warranty12 Months
ID каталога97802
ManufacturerEndress+Hauser
ModelUltrasonic Measurement Time-of-Flight Prosonic FMU42
Part NumberFMU42-ATB3A22A
Shipping Weight6 KgMade in Germany
АртикулFMU42-ATB3A22A
Срок поставки12 - 16 Weeks

Описание

Ordering Information Model FMU42 Ultrasonic Measurement Time-of-Flight Prosonic FMU42 Approval A Non-hazardous area Process Connection T UNI flange 4"/DN100/100, PP max 2.5bar abs./ 36psia, suitable for NPS 4" Cl.150 / DN100 PN16 / 10K 100 Power Supply; Output B 2-wire, 4-20mA HART Operation 3 Prepared for FHX40, remote display (accessory) Housing A F12 Alu, coated, IP68 NEMA6P Cable Entry 2 Gland M20 (EEx d > thread M20) Process Sealing Sensor / Flange 2 FKM Viton Additional Option A Basic version
