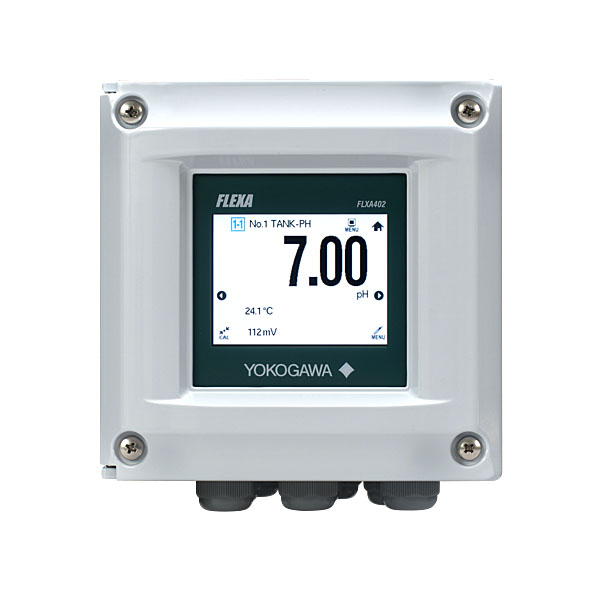

FLXA402-A-B-DD-P1-NN-A2-WR-N-N-N-NN/UM | Yokogawa FLXA402 Multi Channel 4-Wire Analyzer

Ordering Information Model FLXA402 4-Wire Converter Power supply -A AC version Housing(1) -B Aluminum alloy cast + urethane coating Type -DD NI for FM(4) 1st input(2) -P1 pH/ORP (PH) 2nd input(3) -NN Without input mA Output/Input -A2 2 x 4-20 mA Output + 1 x Contact Input (mA1 output: with HART) Contact Outputs -WR Contact outputs (Wash and Fail contact outputs) Bluetooth -N Without Bluetooth Digital Communication -N Without Digital communication Country(3) -N Global except Japan -NN Always -NN Mounting hardware /UM Universal mounting kit(5) Urethane coating is for acid resistance. For high anti-corrosion coating, urethane coating and epoxy coating which is for alkali resistance are applied.When you select both 1st and 2nd inputs, prepare a sensor for each input. If you do not connect the sensor, an alarm will occur. Select only “-J” if you use the converter in Japan. Only SI unit (International System of Units) applies.When selecting Type “-DD” (Nonincendive for FM), “-D1” “-D5” on 1st/2nd input are not available.When selecting “-S5” as 1st/2nd input, select SA11 “-CD” (IS for FM-US, FM-Canada). Please check Control Drawing about the other conditions.Universal mounting kit contains pipe, wall mounting hardware (/U) and panel mounting hardware (/PM).
