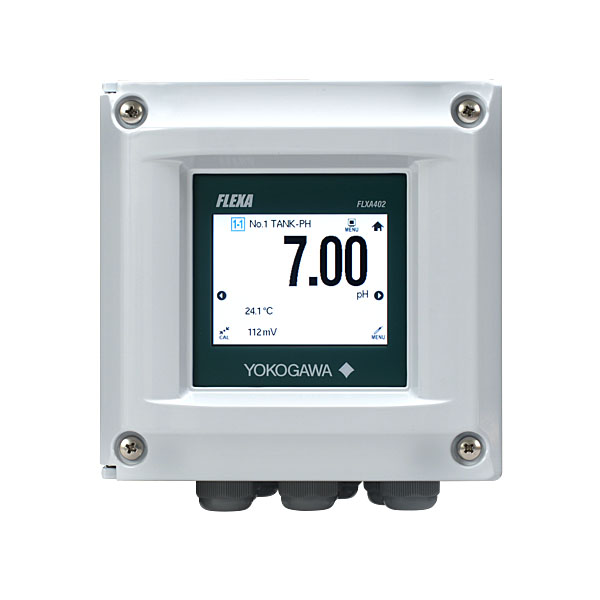

FLXA402-A-B-AB-P1-NN-A2-NR-N-N-N-NN/U | Yokogawa FLXA402 Multi Channel 4-Wire Analyzer

Part Number: FLXA402-A-B-AB-P1-NN-A2-NR-N-N-N-NN/UModel: FLXA402 Multi Channel 4-Wire AnalyzerManufacturer: YokogawaSupport of Up to Five SensorsThe FLXA402 can connect up to five sensors, realizing interruption-free measurement even during maintenance. Multiple sensor measurement offers additional functionalities including a variety of calculated data as well as the option to program the analyzer as a redundant system.Advanced FunctionsWith the FLXA402, one analyzer can accept: pH/ORP, Contacting Conductivity (SC), Inductive Conductivity (ISC), Dissolved Oxygen (DO), and Optical Dissolved Oxygen Sensors with self-diagnostic capabilities. Additional functions include:Continuous measurement of sensor impedance, asymmetric potential, and slope, and continuous monitoring for electrode contamination/damage, burnout, and a decline in measurement liquid level (ex. pH Analyzer)Online Sensor Wellness checking for predictive maintenanceOrdering NumberModel: FLXA402 - 4-Wire ConverterPower Supply: -A - AC versionHousing¹: -B - Aluminum alloy cast + urethane coating Type: -AB - General purpose for CE, RCM, China standard1st Input²: -P1 - pH/ORP (PH)2nd Input²: -NN - Without inputmA Output/Input: -A2 - 2 x 4-20 mA Output + 1 x Contact Input (mA1 output: with HART)Contact Outputs: -NR - Without Contact outputs (without Wash and Fail contact outputs)Bluetooth: -N - Without BluetoothDigital Communication: -N - Without Digital communicationCountry³: -N - Global except Japan-NN - Always -NNOption: /U - Pipe and wall mounting hardwareUrethane coating is acid resistant.When you select both 1st and 2nd inputs, prepare a sensor for each input. If you do not connect the sensor, an alarm will occur.Select only “-J” if you use the converter in Japan. Only SI unit (International System of Units) applies.
