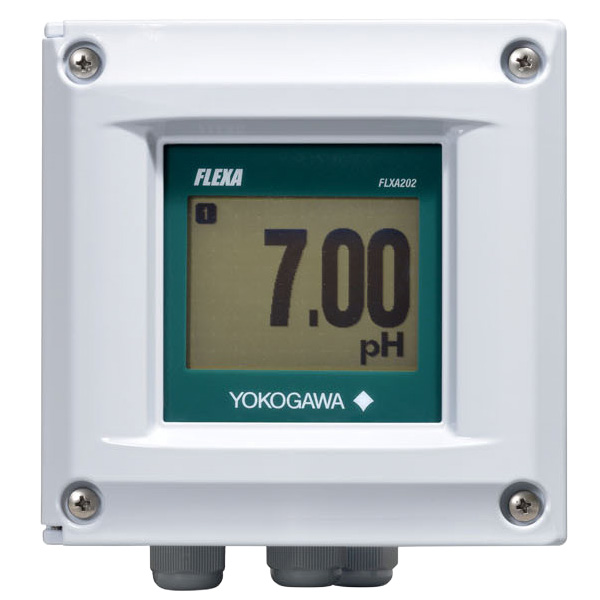

Model and Suffix Codes Model FLXA202 2-Wire Analyzer Power supply -D Always -D Housing(1) -B Aluminum alloy cast + urethane coating Display(2) -D Anti-glare LCD Type(3) -AB General purpose for CE, RCM 1st input -P1 pH/ORP(4) 2nd input(5) -NN Without input Output -A 4-20 mA + HART -N Always -N Language set(6) -LA English and 11 languages Country(7) -N Global except Japan -NN Always -NN Mounting hardware /U Pipe and wall mounting hardware Urethane coating is for acid resistance, and epoxy coating is for alkali resistance. For high anti-corrosion coating, both urethane coating and epoxy coating are applied.Type “-CF” is anti-reflection coated. Other types are anti-glare coated.Type “-C * ” is intrinsic safety (IS), Type “-DB” is type n of ATEX and IECEx, Type “-DD” is nonincendive (NI) of FM and CSA Type “-DE” is type n of CSA.This input is to be come from an analog pH/ORP sensor.When a 2nd input is selected, only the same kind of the 1st input is available.For example, when a 1st input is “-P1”, the 2nd input must be the same “-P1”.The combination of ISC and ISC is not available. And, the combination of SENCOM sensor and SENCOM sensor is not available, either. These languages are message languages on the analyzer’s display.One analyzer has English and 11 languages.All languages are as follows; English, Chinese, Czech, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian and Spanish.When an analyzer is used in Japan, it must meet the Japanese Measurement Law, please select the “-J”. Only SI units must be used on the analyzer and its documents in Japan.
