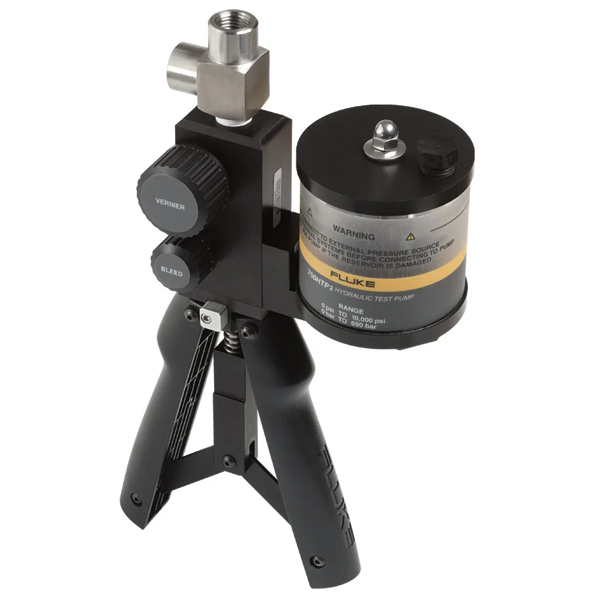

Product overview: Fluke 700HTP-2 Hydraulic Test PumpThe Fluke 700HTP-2 is a hand operated hydraulic pressure pump designed to generate calibration pressures up to 10,000 psi/690 bar. Designed for use with Fluke-700 series high pressure modules such as the Fluke-700P09, 700P29, 700P30 and 700P31.Ideal for calibration when connected to a Fluke high pressure module via the reference port. The 700HTP-2 uses distilled water or mineral-based hydraulic oil as a source for calibration of high pressure input devices such as pressure transmitters or pressure gauges. Can also be used with Fluke 717 pressure calibrators.Key featuresVariable size stroke adjustment, allows the user to vary the volume and pressure per strokeIntegral pressure adjustment vernier knob for fine pressure adjustmentDirectly connection to pressure modules consolidates two separate pieces into one when performing pressure calibration and testingTwo ¼ inch NPT pressure ports, one for reference (pressure module or gauge), one for UUTCompatible with optional Fluke-700PRV pressure relief valve designed to protect pressure modules from overpressure damageImproved primingImproved stroke limiting mechanismNote: The user must provide a hose with appropriate end fittings to apply pressure from the UUT port to the calibration unit under test such as the Fluke-700HTH-1 hose kit.
