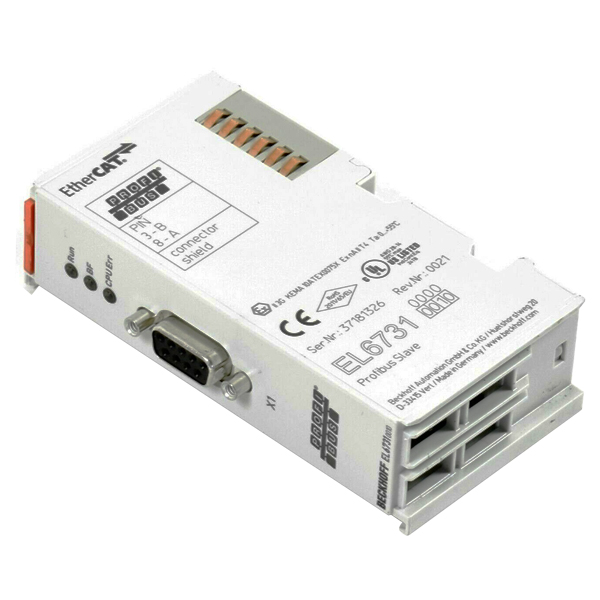

EL6731-0010 | Beckhoff PROFIBUS Slave Terminal

Part Number: EL6731-0010Technical DataTechnology: PROFIBUS slave terminalCycle time: differing DP cycle times per slave are possible using the CDL conceptFieldbus: PROFIBUS DP (standard), PROFIBUS DP-V1 (Cl. 1+2: acyclic services, alarms), DP-V2, PROFIBUS MC (equidistant)Number of fieldbus channels: 1Data transfer rates: 9.6 kbaud…12 MbaudInterfaces: 1 x D-sub socket, 9-pin, galvanically decoupledBus device: max. 125 slaves with up to 244 bytes input, output, parameter, configuration or diagnostic data per slaveHardware diagnosis: status LEDsBit width in the process image: total max.: 1.4 kbyte input and 1.4 kbyte output dataCurrent consumption E-bus: typ. 350 mAWeight: approx. 70 gOperating/storage temperature: 25…+60 °C/-40…+85 °CRelative humidity: 95 %, no condensationVibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4Protect. class/installation pos.: IP 20/variableApprovals: CE, UL, Ex
